Motorized platform cart
The Zallys HS4 4-wheel electric trolley is versatile and finds application in various sectors, for example in industries, on construction sites and also for agricultural use, both outdoors and indoors. Sturdy and easy to handle, it can be equipped with a tub or a platform to transport loads of up to 1,000 kg. Thanks to the numerous safety systems, such as the presence sensor and the electromagnetic brake, the user can operate without risks, even on slopes of up to 30%. The electronic forward and reverse system with knob accelerator makes work easy and safe.
Like all Zallys vehicles, HS4 is a high quality Made in Italy product, guaranteed and CE certified in compliance with current European regulations.
Flatbed electric trolley
-
to transport loads up to 500 kg ;
-
versatile and compact;
-
with superelastic wheels for indoor use;
-
travel speed adjustment with potentiometer.

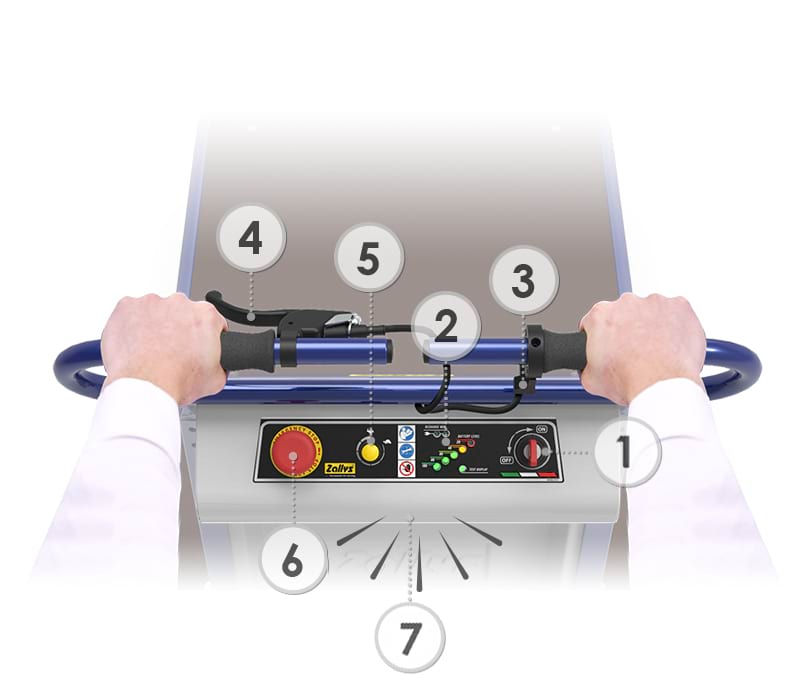

Ergonomic driving
- ignition key;
- LED display with battery charge indicator;
- buttons for selecting the travel direction;
- dead-man lever;
- potentiometer for selecting the travel speed;
- mushroom button for emergency stop;
- integrated anti-crushing system: by pressing on the dashboard, the machine stops and moves slightly forward.
LED control panel
The control panel of the Zallys M15 battery-powered trolley indicates the percentage of remaining battery charge, with an additional light that signals when the level is critical and reminds you to recharge as soon as possible.
Autonomy for an entire working day
This model is equipped as standard with two 130Ah batteries, which guarantee the machine an autonomy of 8 working hours with continuous use.
The batteries are AGM sealed and therefore do not require maintenance.
High frequency external battery charger
The Zallys charger provides reliable and quality charging. Thanks to PFC (Power Factor Correction) technology, it improves battery performance during charging and prevents potentially harmful current peaks.
Furthermore, it is multi-voltage and adapts to the 110 or 220V electrical network and is equipped with “buffer” technology, essential for maintaining battery performance in the event of long periods of non-use.
Specifications
| Model name | M15 |
| Certification | CE |
| Loading capacity | 500 kg |
| Maximum speed | 5,5 km/h |
| Weight (without batteries) | 78 kg |
| Length | 1,232 mm |
| Width | 690 mm |
| Height | 1,075 mm |
| Turning diameter | 1,18/td> |
Case history
Battery powered trolley inside the industry
The Zallys M15 battery-powered trolley facilitates maintenance work in industrial plants. In fact, a workbench can be placed on the large loading surface to transform it into a mobile workshop with tools always at hand.
Battery-powered trolley for order picking operations
With this custom version of the Zallys M15 battery-powered trolley, picking operations to prepare online orders have been optimised: the shelf platform offers more space than the traditional trolley, furthermore the electric motor eliminates manual movement.
Battery-powered trolley for internal transport of boxes
The Zallys M15 battery-powered trolley represents the ideal solution to eliminate the manual handling of loads up to 500 kg. This company uses it to transport boxes in the production area, passing through corridors, doors and elevators.
Application gallery
