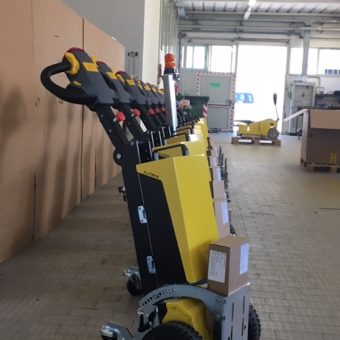

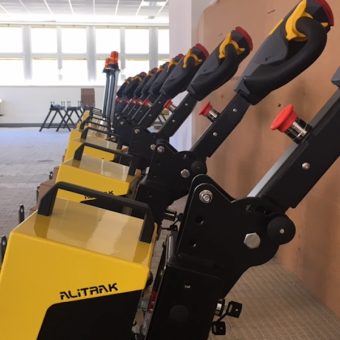

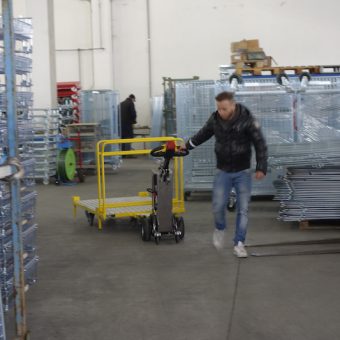

The LT300 is a battery-powered tug with tiller drive. It has been designed to move trolleys and other containers on wheels safely and comfortably, reducing physical eἀort and improving productivity.It is equipped with an emergency stop that can be easilyactivated from the driving tiller. This tug is particularly suitable for internal handling of trolleys at airports, hospitals, factories, warehouses, etc. Various configurations are possible, choosing between different types of batteries and tires. It can be set up with accessories that make the standard product adaptable to multiple uses.
- Compact, ideal for handling and storing the vehicle in confined spaces
- Foldable tiller with variable height, for greater comfort of use
- Variable inclination of the machine, for better balance and safe operation

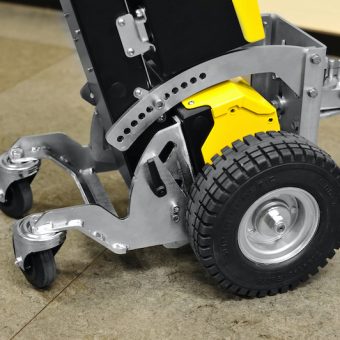

- Independent adjustment of the support wheels: optimal set-up foreach type of use
Download PDF
Alitrak AU LT300 Electric Tow Tugs
Download PDF
LT-300 Upgrade and option List 2019
Download PDF
Clamp Attachment for LT300 (#AA00168)
| FEATURES | |
|---|---|
| Equipment body | 2 traction wheels and2 support wheels |
| Traction wheels | 250 mm Superelastic |
| Driving control type | Foldable tiller |
| Accelerator | Butterἀy type |
| Battery charger | External 5A |
| Dashboard display | Remaining battery charge |
| Parking brake | Electromagnetic |
| Batteries | AGM type, 2 x 12 V/33 Ah C20 |
| Electric motor | 24V / 300 watt S 2 20 min |
| Product net weight | 80 Kg |
| PERFORMANCES | |
|---|---|
| Weight movement capacityon flat surface up to* | 1000 Kg |
| Pulling speed | 4,5 Km/h approx. |
| Pushing speed | 2,5 Km/h approx. |
| Battery recharging time | 8 hours |
| *The weight movement capacity is an indication., that can change with different machine fittings and working conditions (type of ground,wheel type,use of ballast,etc.) | |
Features shown are subject to change without notice

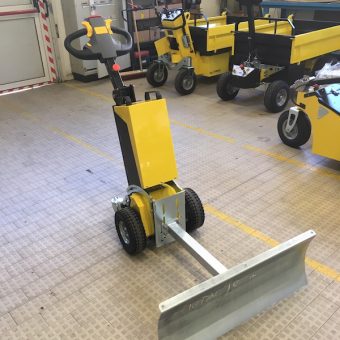

ACCESSORIES

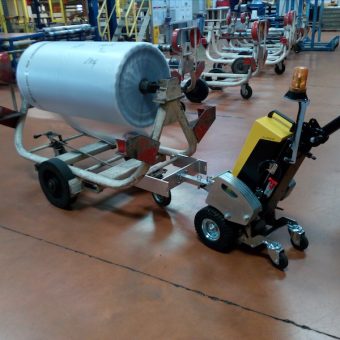

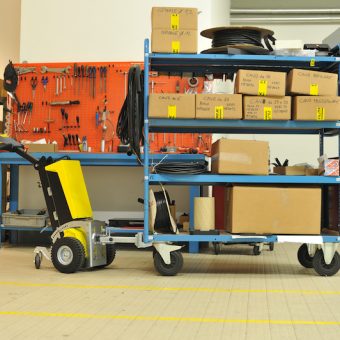

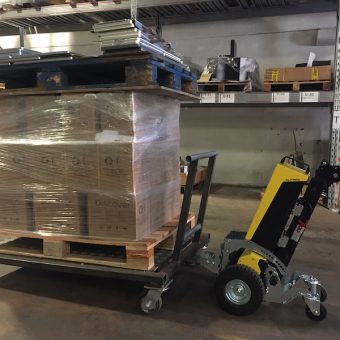

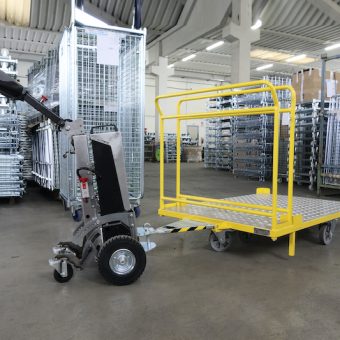

LT300 Tug Applications
