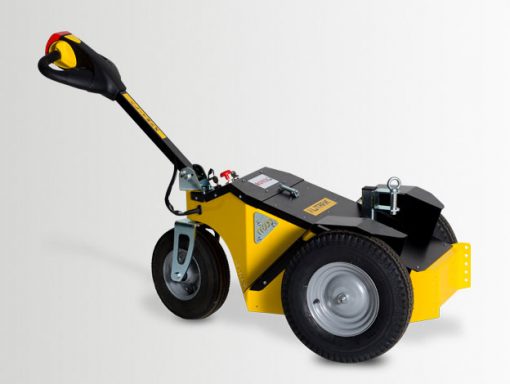

The OT-600 is a Outdoor three wheeled ZERO emission electric drive pedestrian vehicle ergonomically designed to easily move Light planes, trailers, caravans, wagons and single commercial or multiple residential waste containers with safety and ease. The Tug Trak reduces the manual effort required to perform repetitive tasks thereby improving productivity and reducing the chance of work related injuries. The OT-600 has a pulling capacity of 2000kgs and a loading capacity of 300kgs and can handle 250kgs loads on a 20% slope.
The smaller size of the OT-600 means that it is easily maneuvered and can be used in small spaces. The design allows for pushing or pulling and comes with a standard connection post and antidumping support wheels. With the addition of the trailer ball accessory or the waste container connector, the OT-600 can handle many tasks. Additional options are solid non-marking tires, safety operational light, ballast and many different attachments.
Videos
Alitrak Outdoor Pedestrian Electric Pusher and Puller with Automatic Coupling Attachment.
Moving Wheelie waste bins on ramp with Tow Tug OT900 / OT1200

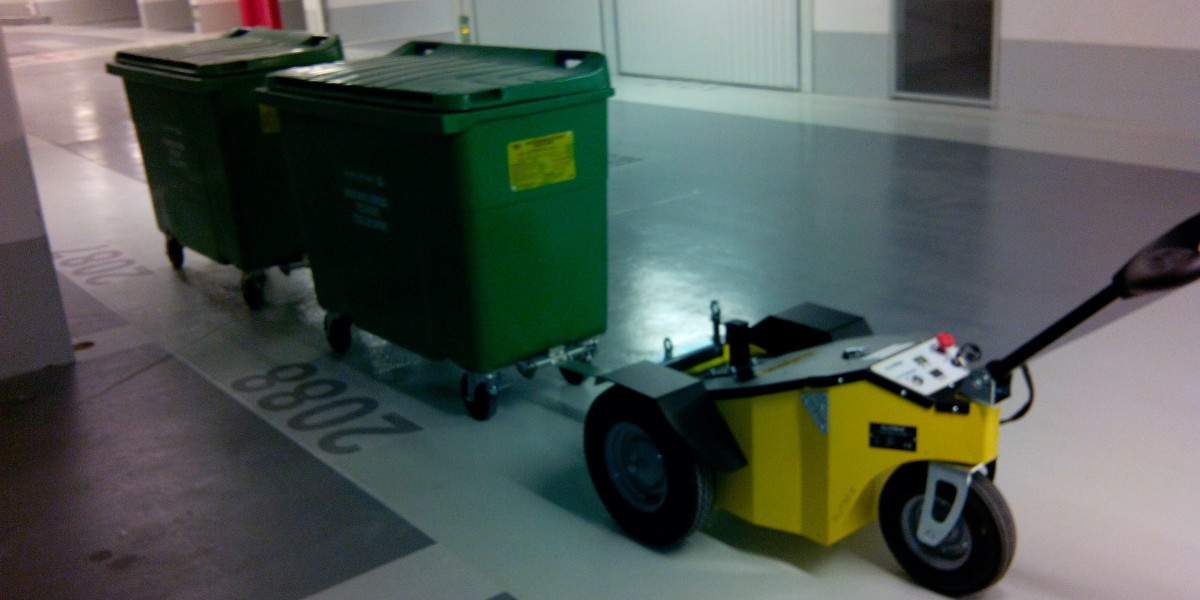

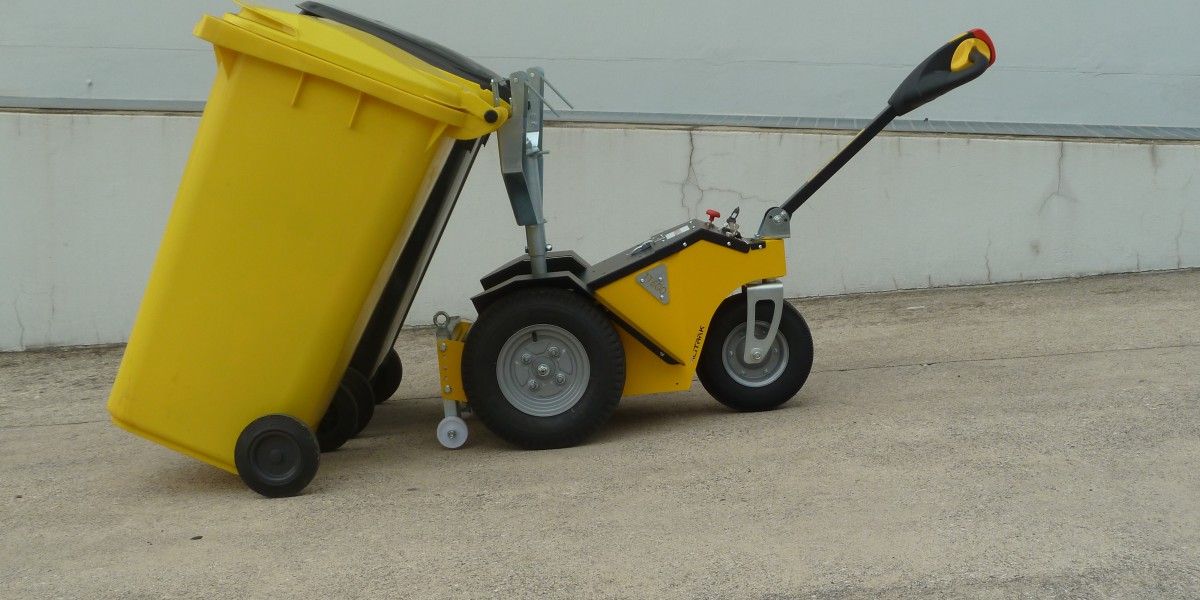

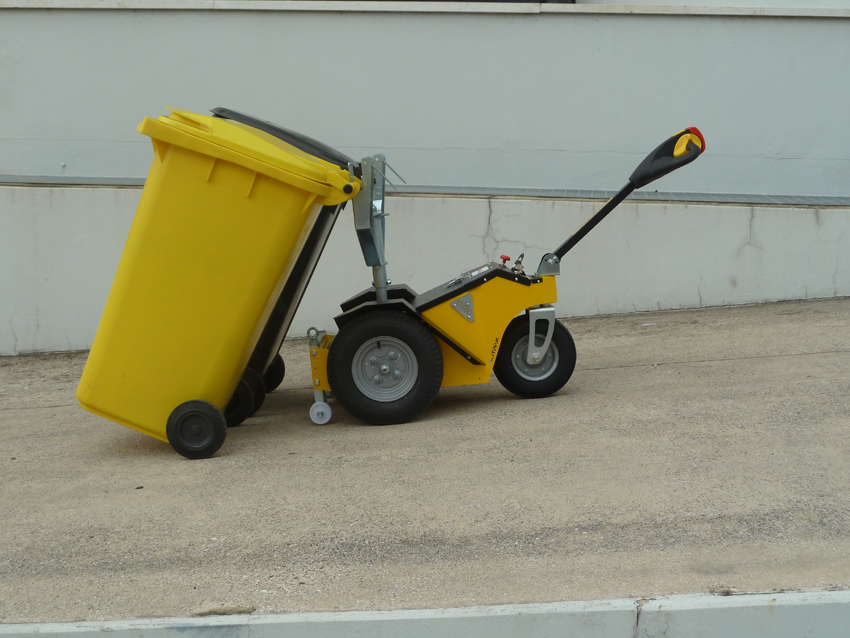

TT600/OT600 Moving Wheelie bins
TT900 or OT1200 Tug with Pipe & Tube frame clamp
Specifications
- Pulling capacity on flat surface: 2000 Kg
- Loading capacity on flat surface: 300 kg
- Pulling speed: fast 5 Km/h – slow 2,5 Km/h
- Pushing speed: fast 3,5 Km/h – slow 1,8 Km/h
- Battery recharging time: approx. 8 hrs.
- Battery: LEAD ACID 2 x 12V/72 Ah C20 (or AGM 2 x 12V/100 Ah C20)
- Electric motor: 24V/600 watt S2 20 min
- Size (mm): 1370L x 690W x 1000H
- Weight: 130 kg

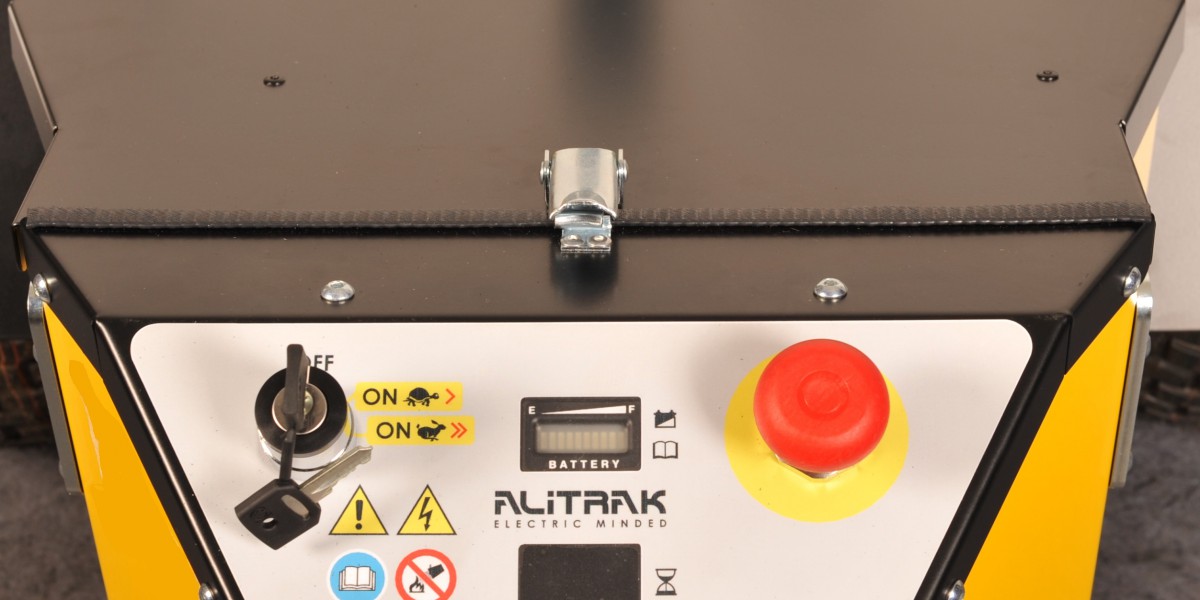

- Dashboard display: Remaining battery charge
- Battery charger: On board – 13A high frequency
- Speed control: Butterfly type
- Parking brake: Electromagnetic
- Oil bath differential
BATTERY OPTIONS: |
|
|---|---|
| # OT-600-01: | Folded 2x12V / 72 Ah C20 or |
| # OT-600-02: | AGM 2x12V / 100 Ah C20. |
| # OT-600-03: | AGM 2x12V / 100 Ah C20, with No marking superelastic tyres. |
OPTIONS: |
|
|---|---|
| Option a: | Direct Steering Wheel System |
| Option b: | Polyurethane filled Wheels (anti-flat tires) |
| Option C: | Multi functional tiller arm system, Including: Pivoting wheel mode, direct steering wheel mode, horizontal tiller arm adjustment |
Specifications shown are subject to change without notice

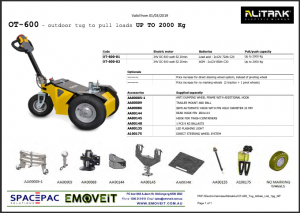

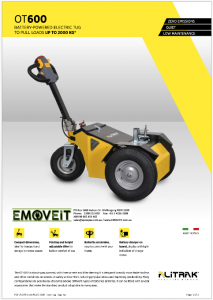

DOWNLOAD PDF

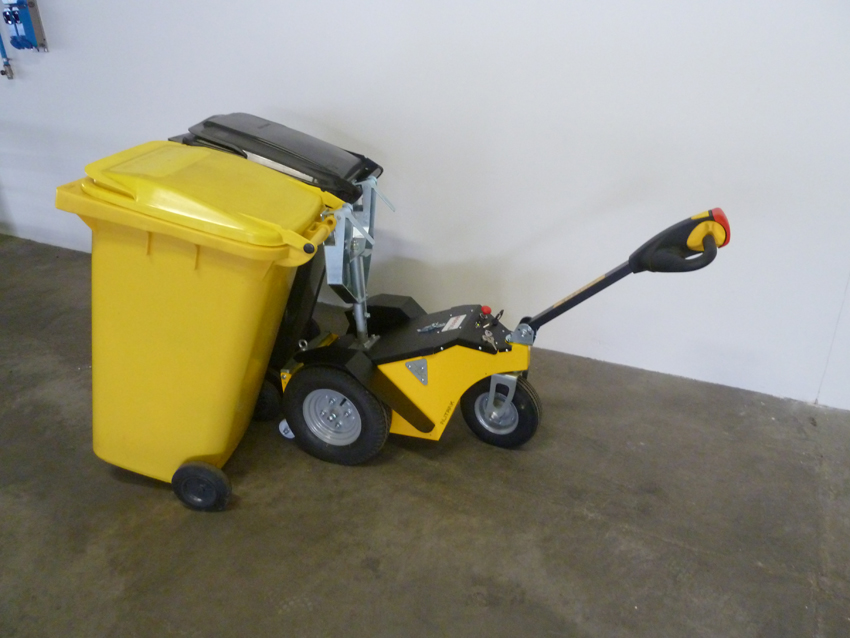

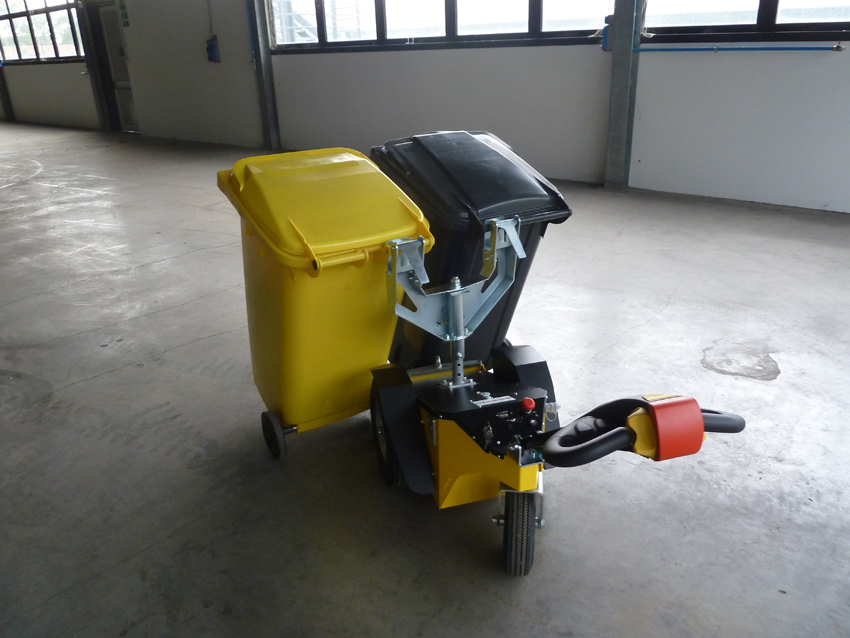

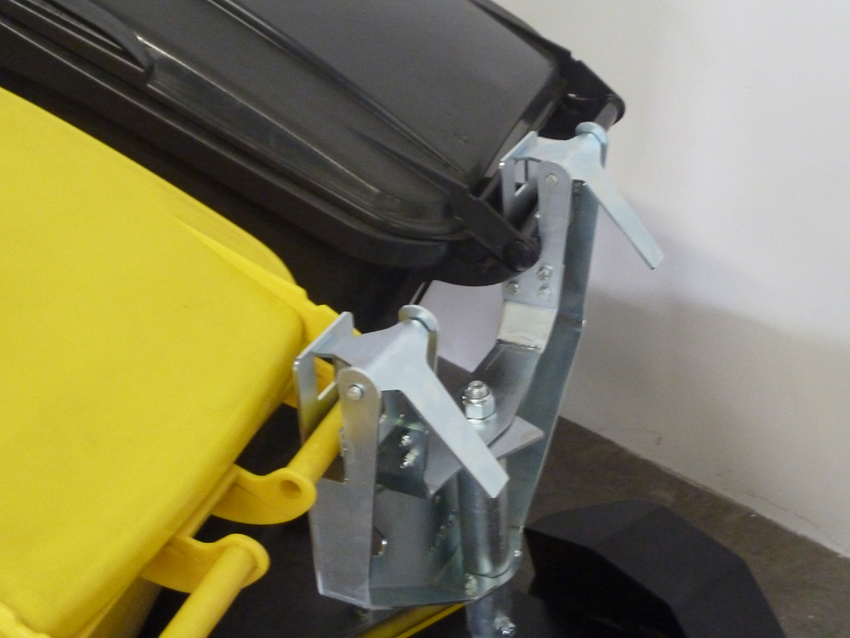

OPTION: Piggy-Back Bin Bracket
GALLERY
