The Zallys M5 electric power pusher has many integrated safety devices, such as the presence sensor and the anti-crush button. Upon request, Zallys M5 can be ATEX and IECEx certified: the certification bodies will take care of the explosion-proof transformations after careful analysis.
Like all Zallys vehicles, M5 is a high quality Made in Italy product, guaranteed and CE certified in compliance with current European regulations.
Industrial electric power pusher
-
to tow loads up to 4,000 kg ;
-
ATEX and IECEx certifications available for use in potentially dangerous and explosive environments;
-
versatile and compact;
-
pneumatic wheels for indoor and outdoor use;
-
5-level travel speed adjustment;
-
wide range of standard or customizable hooks on request.
Ergonomic driving
The Zallys tillerhead was designed and created to make the operator’s use of the machine more ergonomic, guaranteeing the right comfort for prolonged use during the work shift. Its ergonomic design allows you to have everything at hand:
- ignition key;
- LED display showing the remaining battery charge and the set speed;
- button for selecting the 5 speeds;
- horn button;
- maintained action travel controls;
- anti-crushing safety button;
- two extra button slots for additional accessories.
La struttura è composta da materiali resistenti in caso di urti accidentali.
The right speed for every operation
For each level the speed of the machine increases by 20%, according to this curve:
- 1st level: Speed at 20%;
- 2nd level: Speed at 40%;
- 3rd level: Speed at 60%;
- 4th level: Speed at 80%;
- 5th level: Maximum speed;
N.B. The maximum speed of the machine is shown in the Technical Data section.
Autonomy for an entire working day
This model is equipped as standard with two 130Ah batteries, which guarantee the machine an autonomy of 8 working hours with continuous use.
The batteries are AGM sealed and therefore do not require maintenance.
High frequency external battery charger
The Zallys charger provides reliable and quality charging. Thanks to PFC (Power Factor Correction) technology, it improves battery performance during charging and prevents potentially harmful current peaks.
Furthermore, it is multi-voltage and adapts to the 110 or 220V electrical network and is equipped with “buffer” technology, essential for maintaining battery performance in the event of long periods of non-use.

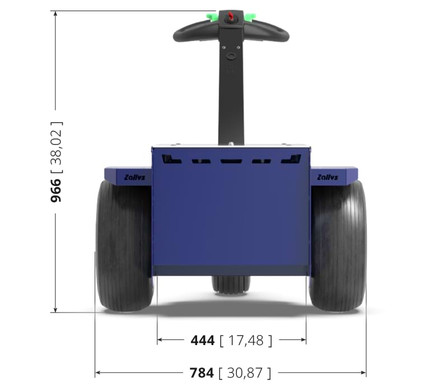

Specifications
| Model name | M5 |
| Certification | CE |
| Towing capacity | 4000 kg |
| Maximum speed | 5.5km/h |
| Weight (without batteries) | 90 kg |
| Length | 1,539 mm |
| Width | 784 mm |
| Height | 1,539 mm |
| Turning diameter | 1,50m |
Case history

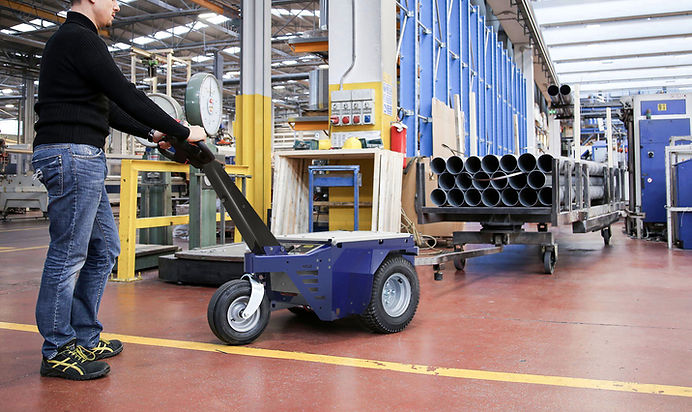

Electric tug for towing steel profiles
This steel profile manufacturing company has chosen the Zallys M5 electric tug to move the trolleys with the production material: with a towing capacity of up to 4,000 kg and ease of use it has improved the efficiency of the production processes.
Handling of heavy and bulky parts
The parts that make up the frames of large machinery are very heavy and bulky and moving them can be a critical issue in the production flow. Our customer found the solution in the Zallys M5 model, which tows loads of up to 4,000 kg with ease and precision.
Electric tug to tow bins
The Zallys M5 industrial electric tug is ideal for managing waste bins: with a towing capacity of up to 4,000 kg, it allows a single operator to quickly, effortlessly and safely move multiple bins at the same time.

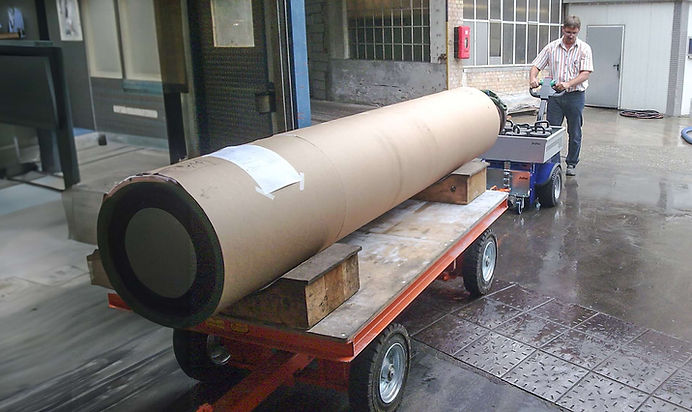

Towing trolleys from production to warehouse
To speed up and, above all, make safer the handling operations of the heavy trolleys with the reels from the production area to the warehouse, our customer has integrated the use of a Zallys M5 electric tug, eliminating manual handling.
Handling containers for air transport
Thanks to its ability to tow up to 4,000 kg, the Zallys M5 electric tug meets the customer’s need to simultaneously move multiple containers with a compact and easy to handle vehicle. Additionally, it has been customized with “safety yellow” paint.
Fast and efficient trolley movement
In hospitals, there are many trolleys to manage and making their movement more efficient by reducing the load on employees is a very important need. The Zallys M5 electric tug is the ideal solution, capable of towing up to 5 trolleys at a time.
Movement of food trolleys and refrigerators
The Zallys M5 electric tug is the ideal solution to facilitate the movement of food trolleys in hospitals and hotels: with its towing power it can manage rows of multiple trolleys, speeding up preparation and increasing efficiency.
Electric tug for hospital trolleys
The “Centre Hospitalier de Perpignan” hospital in France has integrated the Zallys M5 electric tug for moving hospital trolleys inside and outside the facility. Thanks to its traction force it can also tow 5 trolleys at a time.v
