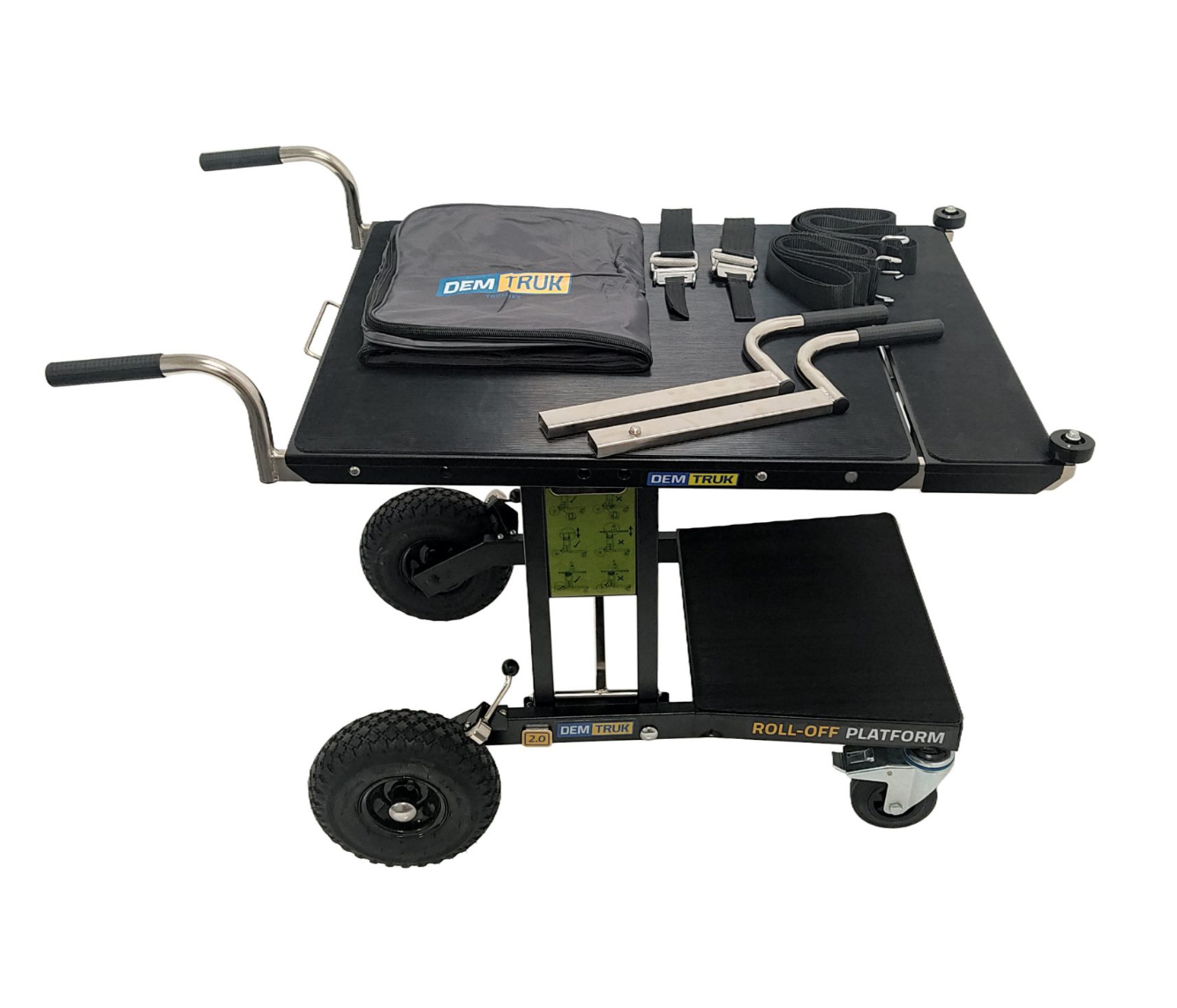

Dem-truk folding pallet trolley
Dem-Truk folding and collapsible trolleys are designed to help you easily load, unload and transport equipment such as medical, office, catering or beverage machines and more.
A handling solution ideal for equipment distribution, demonstration and servicing purposes.
The safest way for one person to transport heavy bulky equipment Dem-Truk is used for transferring heavy, expensive or delicate equipment where lifting in and out of vehicles could cause back strain to the employee, expensive damage to the equipment or where more than one person would be required.
The Versatile equipment cart
Dem-Truk folding and collapsible trolleys are designed to help you easily load, unload and transport equipment such as medical, office, catering or beverage machines and more.
The Dem-Truk allows one person to do the job of several
Loading and unloading is easy due to the DemTruk's adjustable height mechanism. the Dem-Truk equipment trolley is collapsible, allowing you to store right next to your equipment during travel.
Opening or Folding the undercarriage takes only seconds to complete.
4 step set up procedure
- Easily lift the undercarriage from your vehicle and place it on the ground
- Lift the side walls
- Pull the side walls apart until you hear the device locking pins engage
- Set the desired height of the side walls and slide the pallet base onto the undercarriage.
- Height adjustment from 700mm to maximum of 900mm in 45mm increments
Vehicle Loading
- Present your securely strapped load
- Apply the brake
- Disengage the pallet by releasing the secure lock
- Roll the loaded pallet on its front mounted loaded wheels into the vehicle
4 step folding procedure
- Lower the platform supports by simply lift the latch on each side
- squeeze side walls together to release locking pins
- fold the side wall downward to collapse the trolley base
- Place the undercarriage in your vehicle, that can stow neatly alongside your equipment
To unload at your destination simply reverse the procedure
Its that simple and that safe
3 Base Unit options
For smaller transporting jobs there is the lightweight
Standard base with pneumatic tyre option
Maximum load 220 kg
Standard base
Maximum load 220 kg
Lightweight base
Maximum load 155 kg
3 Pallet Size options
- Small Pallet 700 x 600mm
- Medium Pallet 850 x 600mm
- Large Pallet 1000 x 600mm
- Custom Pallet Made to order
The 600mm wide pallets allows safe passage through standard door ways, two door glides are fitted on all models and a load securing strap add extra protection.
Colour – Standard product colour is Pantone colour "560 U" Green hammer finish, the product can be produced in bespoke colours to suit client needs. Please contact us for minimum batch volumes.
Folding - for reduced storage space .The undercarriage folds to only 20cm wide by 31cm high and 92cm long. The standard unit is 26cm wide when folded.
Height Adjustment the pallet height is adjustable from 700mm to 900mm in 45mm increments for use with estate cars, vans, MPV’s, SUV’s, 4 x4’s and hatch backs.
Pallet Handles - Additional handles can be purchased which can reverse, to allow easy carrying of equipment up stairs.
Pneumatic Rear Tyre option to provide maximum protection when transporting delicate equipment over rough surfaces.
Positive Braking on both rear wheels ensure the safety of people and equipment.

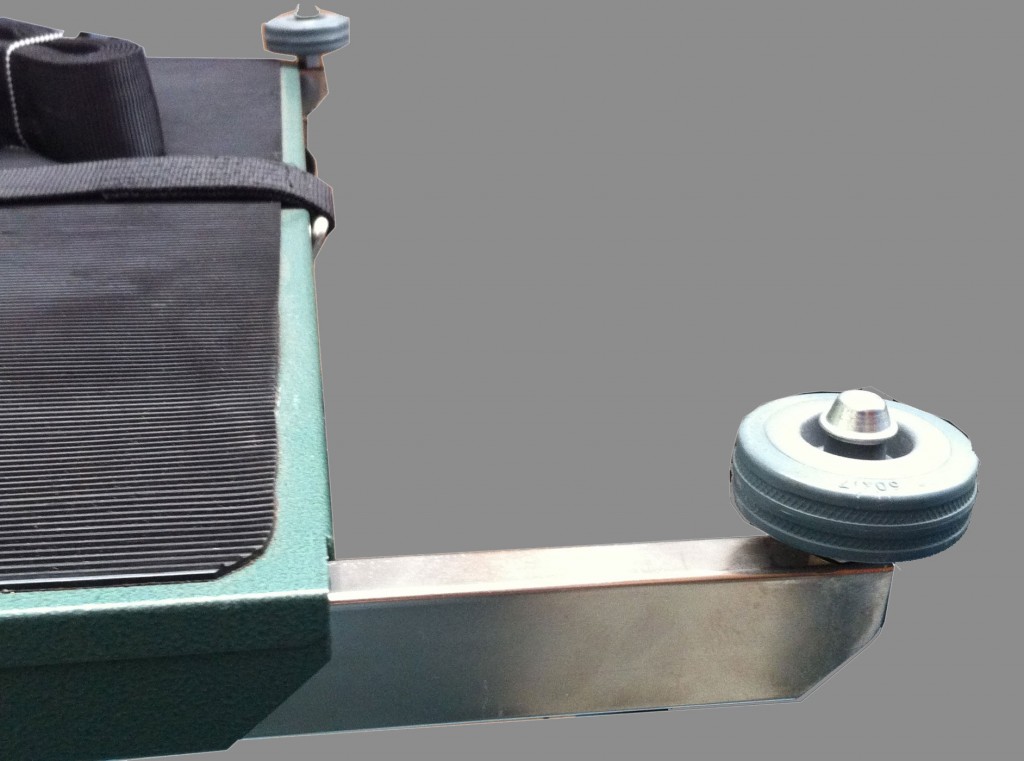

Pallet Front Loading Wheels ensures smooth rolling action of the separated pallet in and out of the vehicle making moving heavy items easy.
Load Straps – can be secured crossways and lengthways to ensure load security.
Door Glides providing easier passage through doors.
We can provide standard products or bespoke handling solutions for many different applications and markets
- Medical Equipment Trolley / Cart
- Office Equipment Trolley / Cart
- Coffee Machine Trolley / Cart
- Scientific Trolley / Cart
- Demonstration Trolley / Cart
- Exhibition Trolley Cart
- Catering Trolley
- Vending Trolley / Cart
- Beverage Trolley / Cart
- Camera & Lighting Crews Trolley / Cart
- Emergency Services Specialist Trolley / Cart
- Military Specialist Trolley / Cart
- Mail Room Trolley / Cart
- Industrial Trolley / Cart
- Banking coin and note counting equipment carts
Dem-truk getting you and your equipment to your customers simply, quickly and safely
- Health and safety - minimises risk of back strain injury to anyone engaged in carrying heavy or bulky equipment.
- Single person operation – saving duplicate staffing.
- Versatility – light weight or heavy weight chassis, choice of three pallet sizes.
- Height adjustable – suitable for vans, estate cars and MPV's.
- Very Reliable - thousands of Dem- truk units currently in service globally.
- Easy manoeuvrability rubber tyres give a smooth ride even over rough ground.
- Time Saving - 3 step folding procedure takes seconds to complete.
- Easy to Handle - In the folded position. The lightweight weighs 13 kilos, the compact undercarriage is lifted by a convenient handle.
- Saves space – the compactness of the undercarriage allows extra storage room in your vehicle for other items.
