Protect cables and hoses from damage

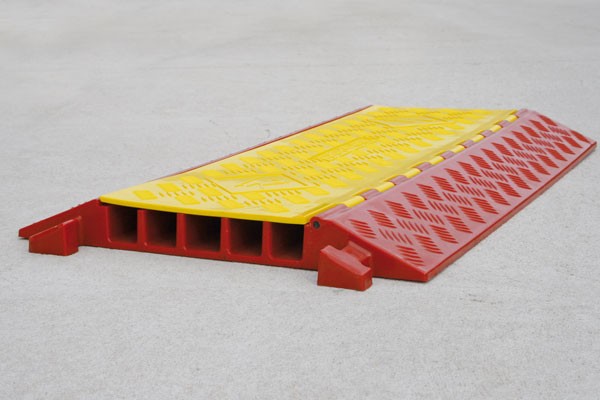

A range of heavy duty polyurethane cable protectors in three sizes – 2, 3 or 5 channels in hi-vis Safety Orange and Yellow. Heavy duty dog-bone connectors ensure modules stay where they are placed. Recessed carrying handle allows easy portability.
Not recommended for forklift and truck traffic.
Features
- Tough polyurethane construction
- Range of 2, 3 or 5 channel modules
- Hinged lid for easy access
- Heavy duty dog-bone connector
- Highly visible
Technical Specifications
| Description: | Polyurethane cable protectors |
| Material: | Polyurethane body with rubber/plastic lid |
| Finish: | Hi-Vis Orange and Yellow. |
| Dimensions: | 2 channels – L1000mm x W250mm x H45mm. 3 channels – L900mm x W500mm x H70mm. 5 channels – L900mm x W500mm x H55mm. |
| Channel size: | 2 channels – W27mm x D30mm. 3 channels – W65mm x D55mm. 5 channels – W35mm x D35mm. |
| Weight: | 2 channel – 5.5kgs. 3 channel – 13.5kgs. 5 channel – 11.5kgs. |
| Installation: | Interlocking modules, no tools required. |
