• ‘Menni’ is a set of 4 modular components that can be plugged together in any combination to satisfy a wide range of end user applications.
• There are four modules in the ‘Menni’ system. The end module, the body module, the ‘T’ or intersection module and the 90 degree corner module.



Value features:



• Designed, developed and manufactured in Australia.
• Designed to comply with AS2890.1:2004 for wheel stops and AS1657:1992 for walkways.
• Solid color, U.V. stabilised, high tech composite plastic construction.
• Supplied with fixings and connectors ready for installation.
• Built-in edge reflectors for improved visibility for approaching vehicles.
• Optional top reflector plugs for improved pedestrian safety.
• Slip resistant texture moulded into surface.
• Strengthened mounting points with large diameter load sharing washers.
• Excellent outdoor weathering characteristics (min. 5 years).
• Lightweight with incredible strength.
• Modular design for ease of use and handling.



Specifications:



• Description: Menni modular asset protection system.
• Material: Injection moulded Linear Low Density Polyethylene (LLDPE).
• Finish: Solid color – Hi-viz safety yellow.

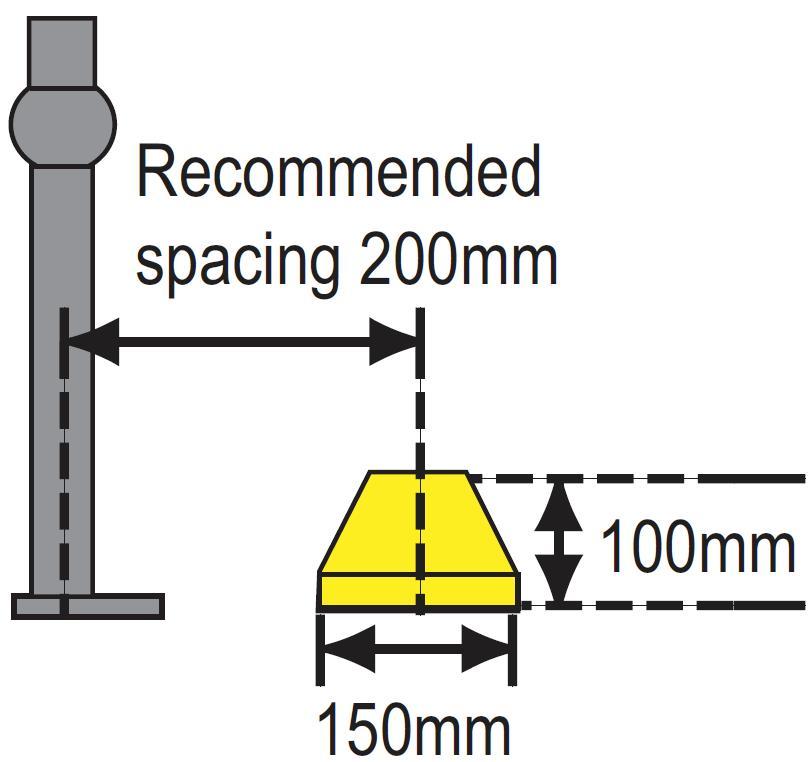

• Dimensions:

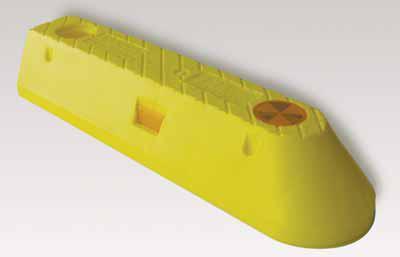

  Menni end module : H100 x W150mm x L540mm (Weight: Approx. 2 kgs)
  Menni body module: Dimensions: L540 x W150 x H100mm. (Weight: Approx. 2 kgs)
  Menni T-intersection module : L300 x L225 x W150 x H100mm.(Weight: Approx. 1.1 kgs per module.)
  Menni 90 degree corner module: L225 x W150 x H100mm. (Weigth Approx. 0.8 kgs per module.)
• No. of fixings: 2 per module (supplied).
• Connector /plugs: 3 per module (supplied).
