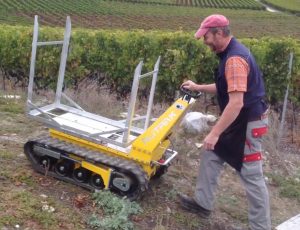

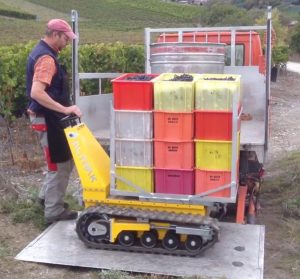

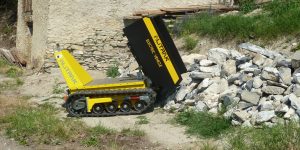

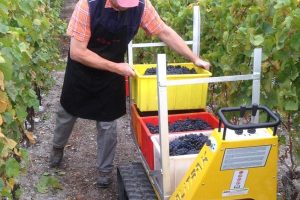

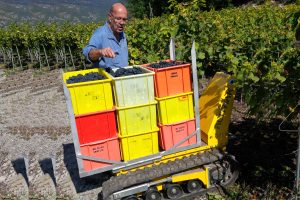

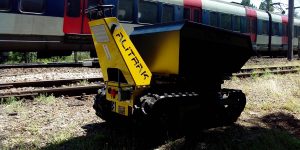

The DCT-300 is an ecologically designed pedestrian controlled electric vehicle, featuring a heavy duty frame and stable track propulsion. The DCT-300 is extremely effective in the vineyards and orchards, in building sites and indoors, in tunnels or underground and in places where tracked traction and zero emission are essential. The version “Performance”, with special motors and drivers, allows the best benefits during the work and grants bigger autonomy (product image with 220 lt. skip and rear tower with hydraulic pump, not included in the basic version)
SPECIFICATIONS:
- Loading capacity: 450 kg
- Max. gradient: 30%
- Max. lateral gradient: 20%
- Forward speed: fast 4,5 Km/h – slow 2,3 Km/h
- Reverse speed: fast 4,5 Km/h – slow 2,3 Km/h
- Battery recharging time: 8 hours
- AGM battery: 4 x 12V/85 Ah C20
- Electromotor: 2 x 48V/1500 watt S2 60 min.
- Length: 1420 mm
- Width: 790 mm
- Height: 1075 mm
- Weight: 387 kg
- Dashboard display: Remaining battery charge – Equipment failures – Hour meter
- Battery charger: External with charge status information
- Accelerator: 2 Joysticks
- Parking brake: Electromagnetic
# DCT-300P

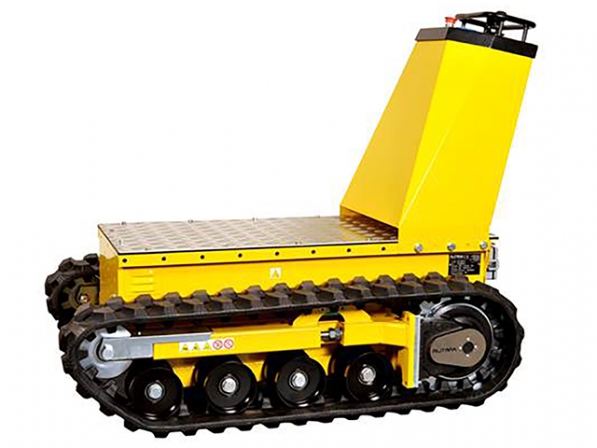

Basic Model of DCT300 No Skip
# DCT-300P-H

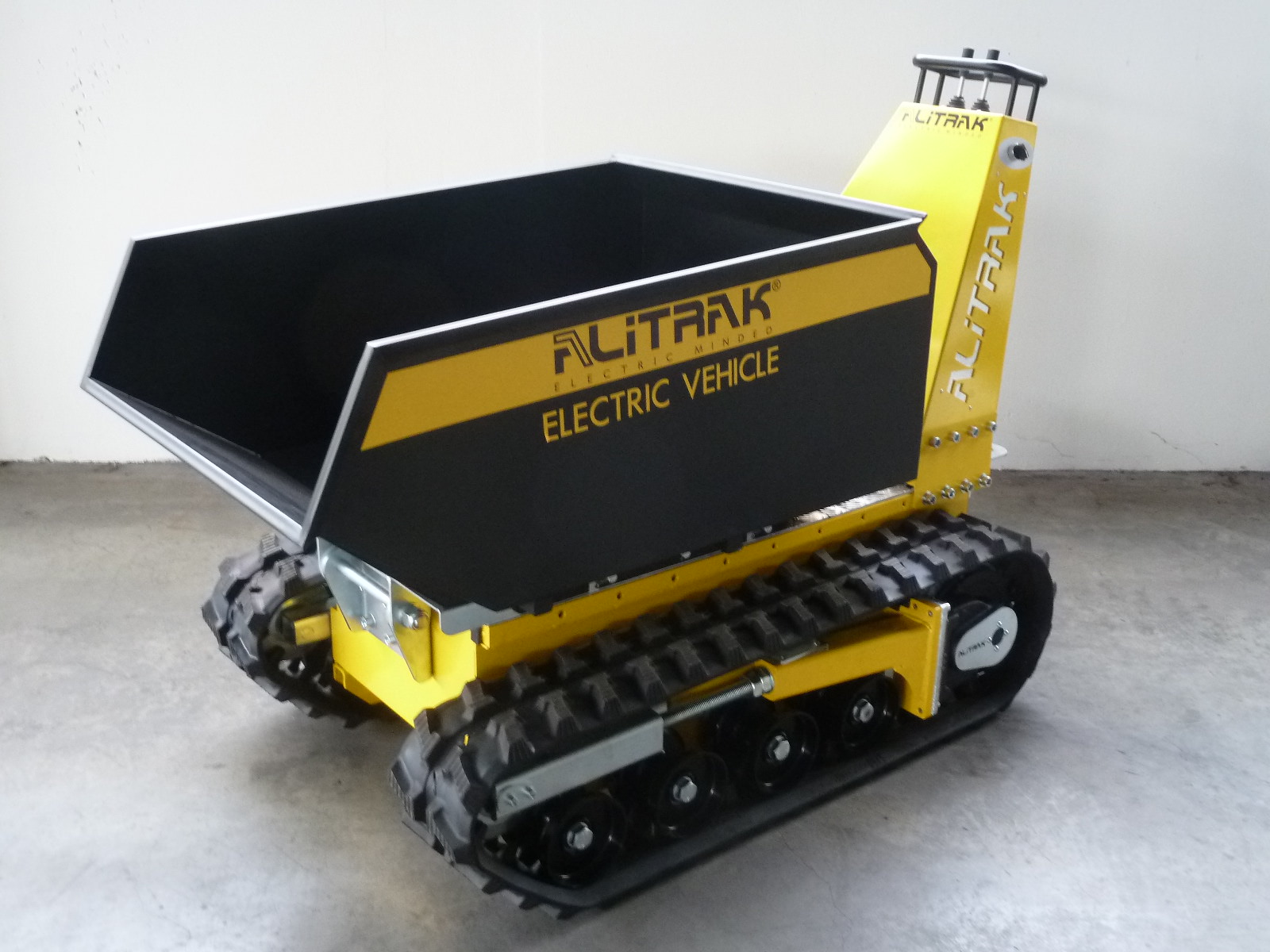

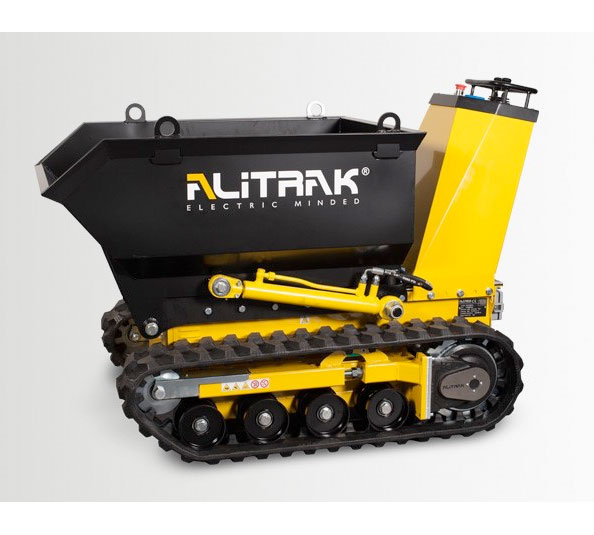

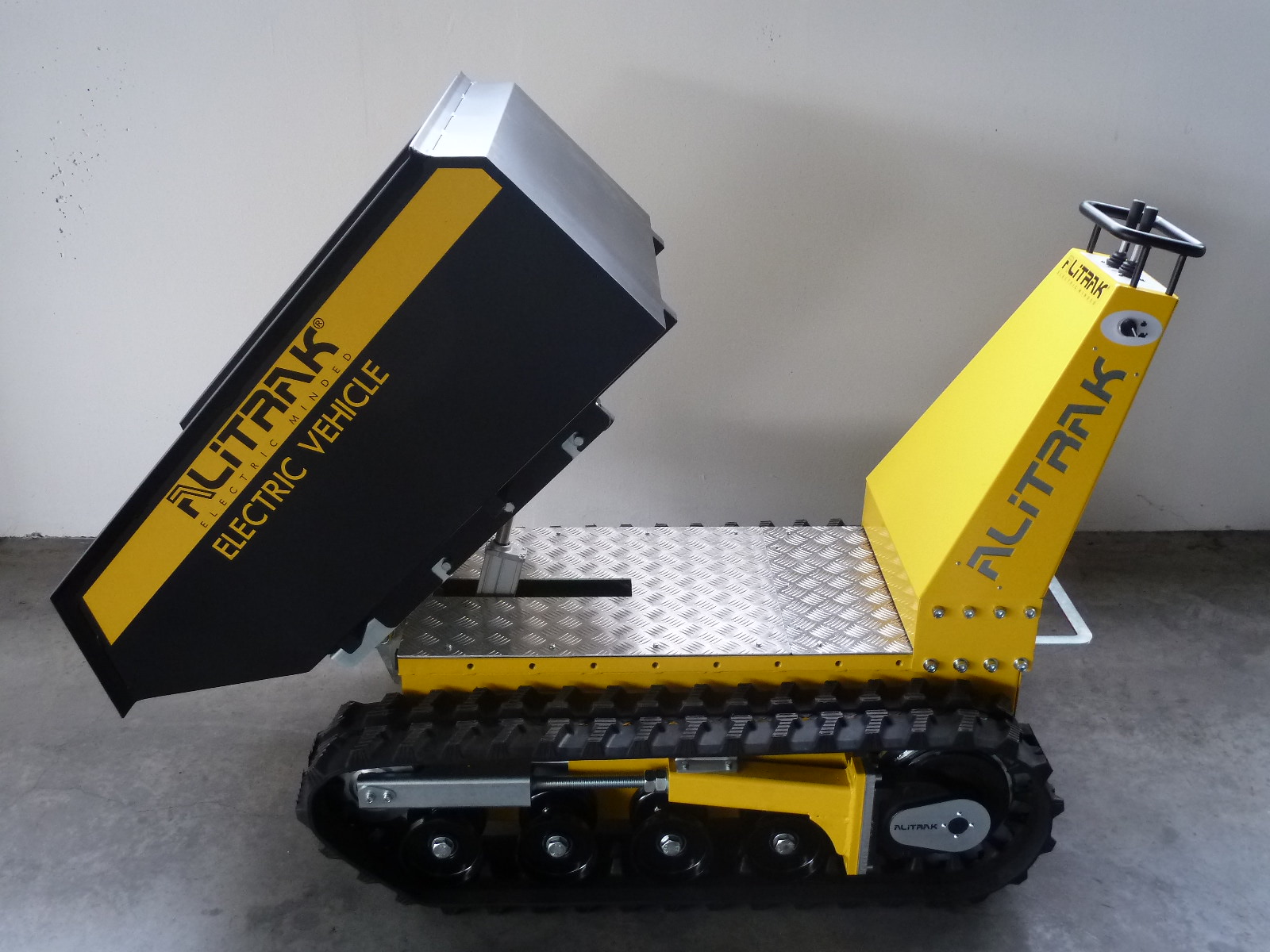

with 300L Skip and Hydraulic Tipping
MODEL OPTIONS:
| # DCT-300P | Base Model without Skip |
| # DCT-300P-H | 300L Skip with hydraulic tipping |
Download PDF

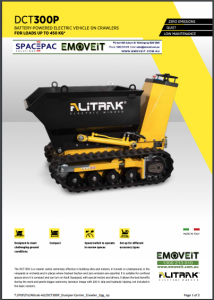

Alitrak tracker DCT300P Brochures .PDF
