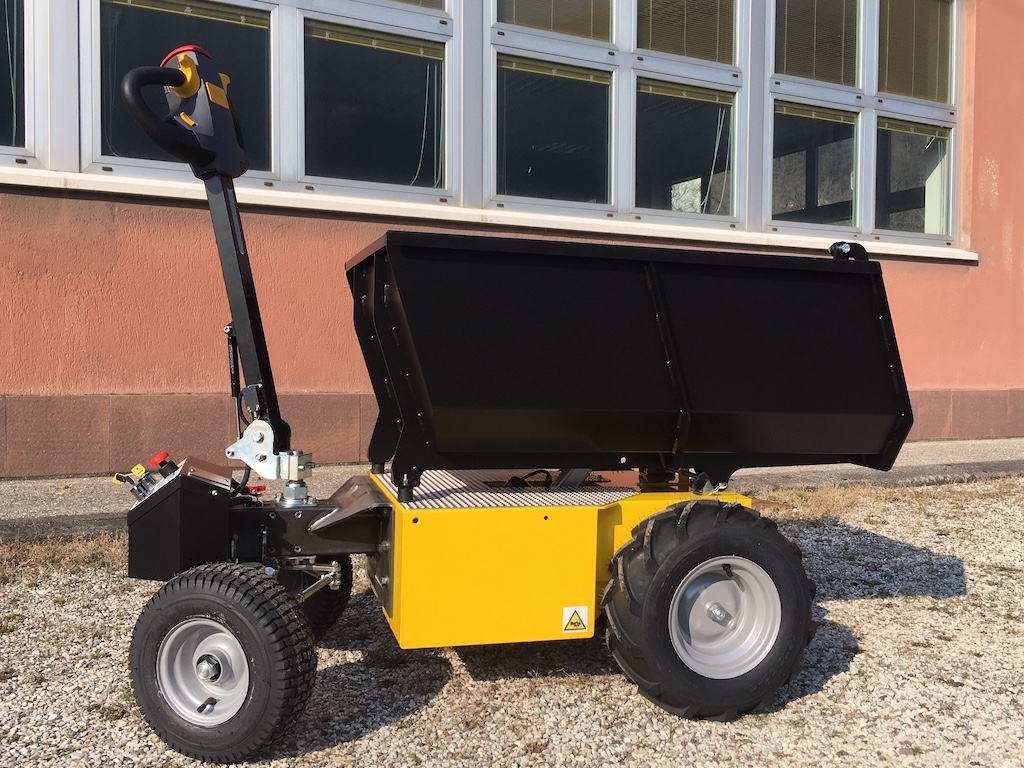

The JM-700 is an electric dumper equipped with Tiller steering, four wheels, with a solid steel structure, it is designed to work in construction, demolitions and industry.
It is also useful in agriculture, and in garden / Landscape building works. The Easy tipping lever is our patented solution for a full control with reduced effort of the skip emptying operation.
This JM-700 version is designed for particularly heavy work, equipped with high load transmission, anchor points for lifting, reinforced handle and hour use meter (ideal for rental situations).
Download PDF

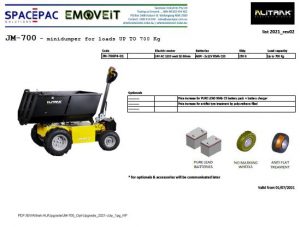

JM700 Mini Dumper 700 kg
Download PDF

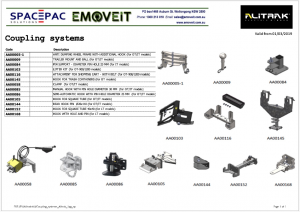

Alitrak AU Coupling and Tow hitches
SPECIFICATIONS:
- Loading capacity: Up to 700 kg / 250L
- Forward speed: 5 km/h
- Reverse speed: 2.5 km/h
- Battery recharge: 8 hours
- AGM battery: 2 x 12V/85 Ah C20
- Electromotor: 24V/1200 Watt S2 60 min

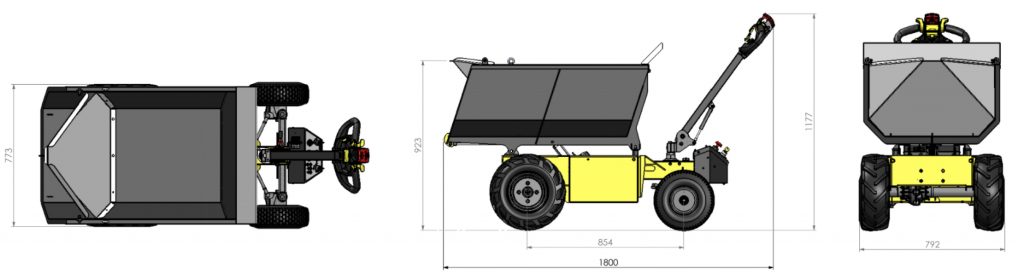

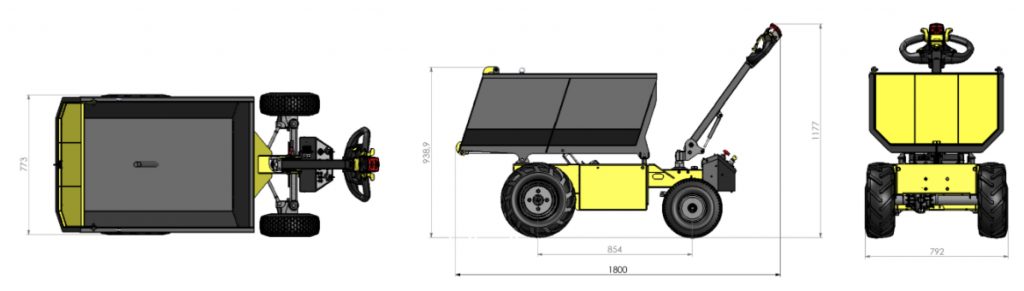

- OA Dimenions: 1800L x 792W x 1177H mm
- Weight: n/a kg

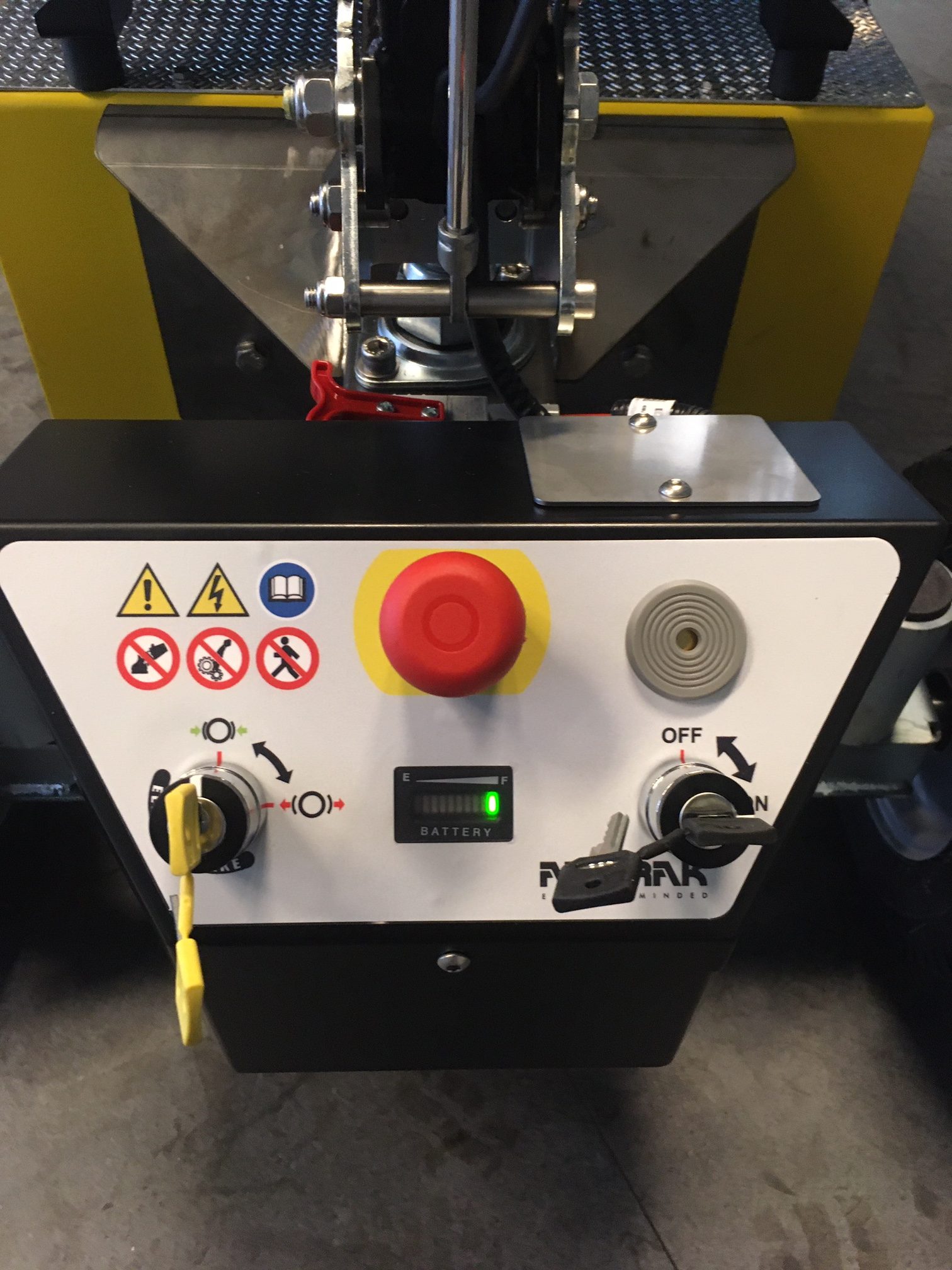

- Dashboard display: Remaining battery charge – Equipment failures – Hour meter
- Battery charger: Integrated

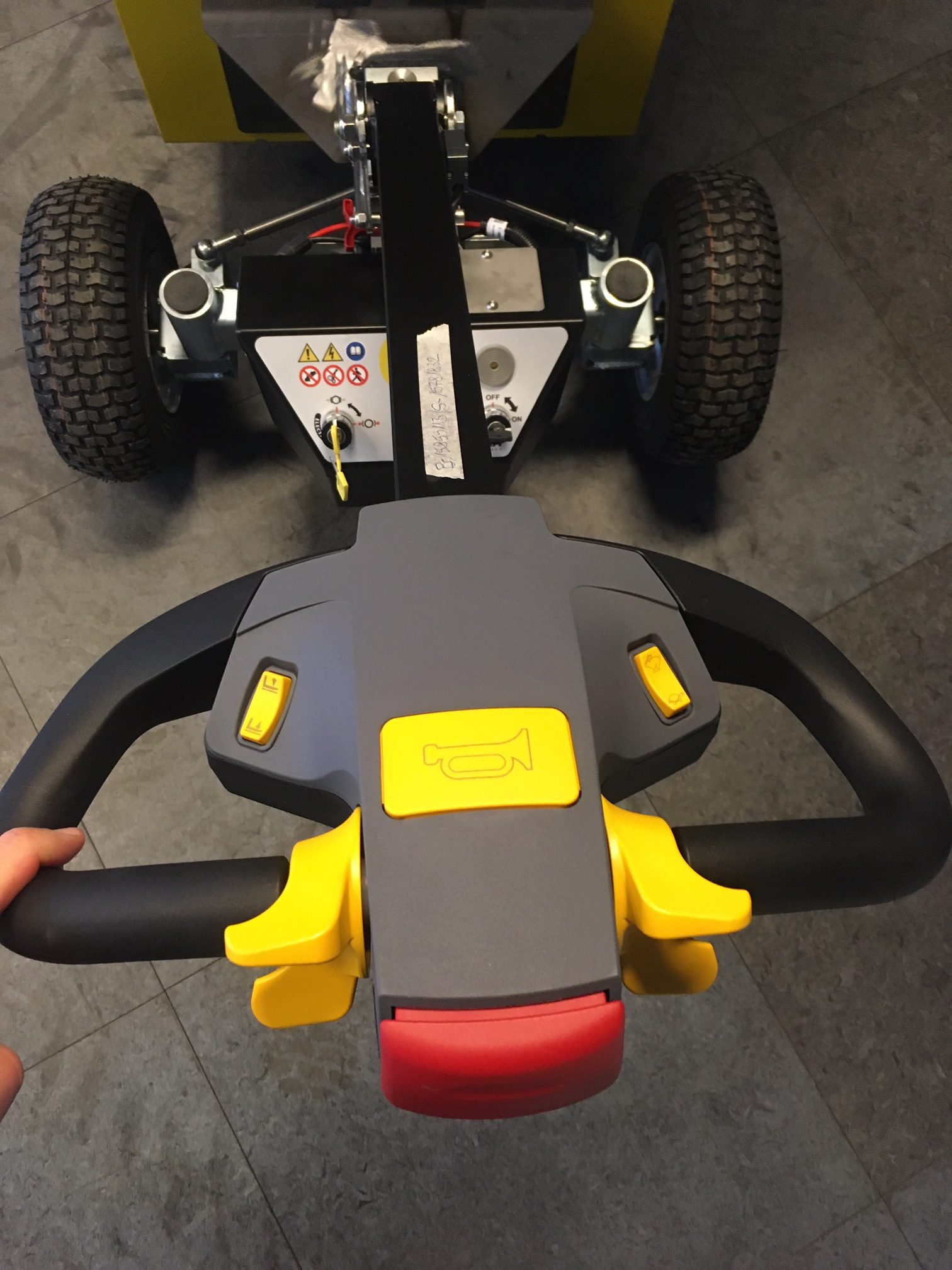

- Speed control: hand accelerator
- Parking brake: Electromagnetic
- Oil bath differential

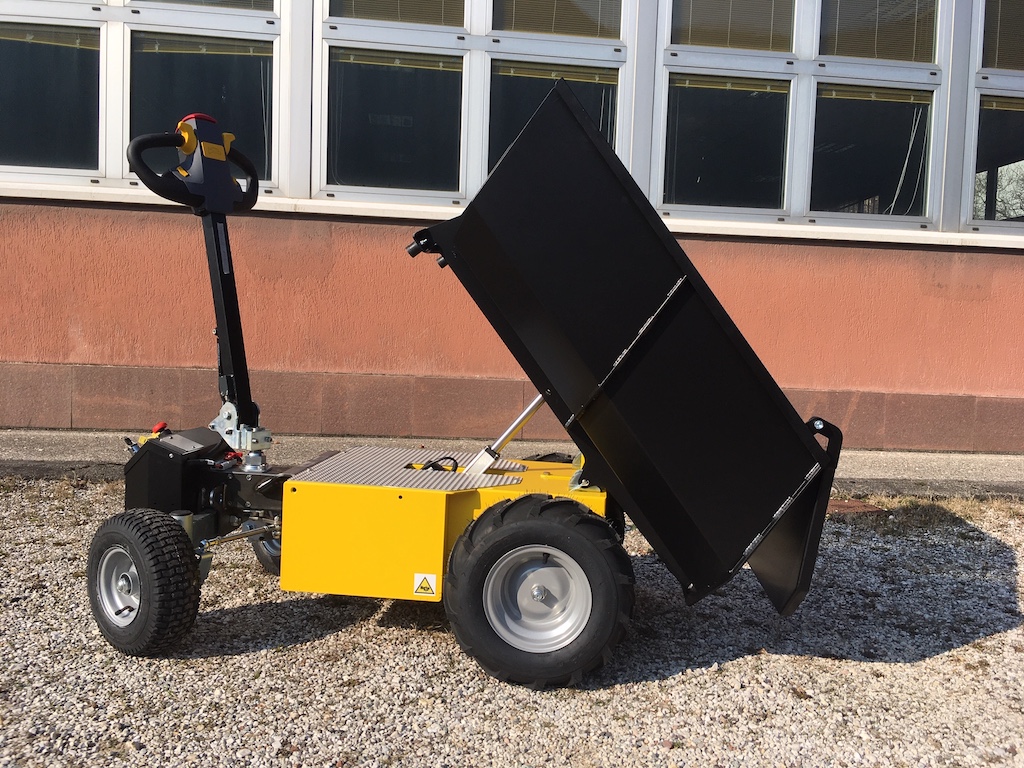

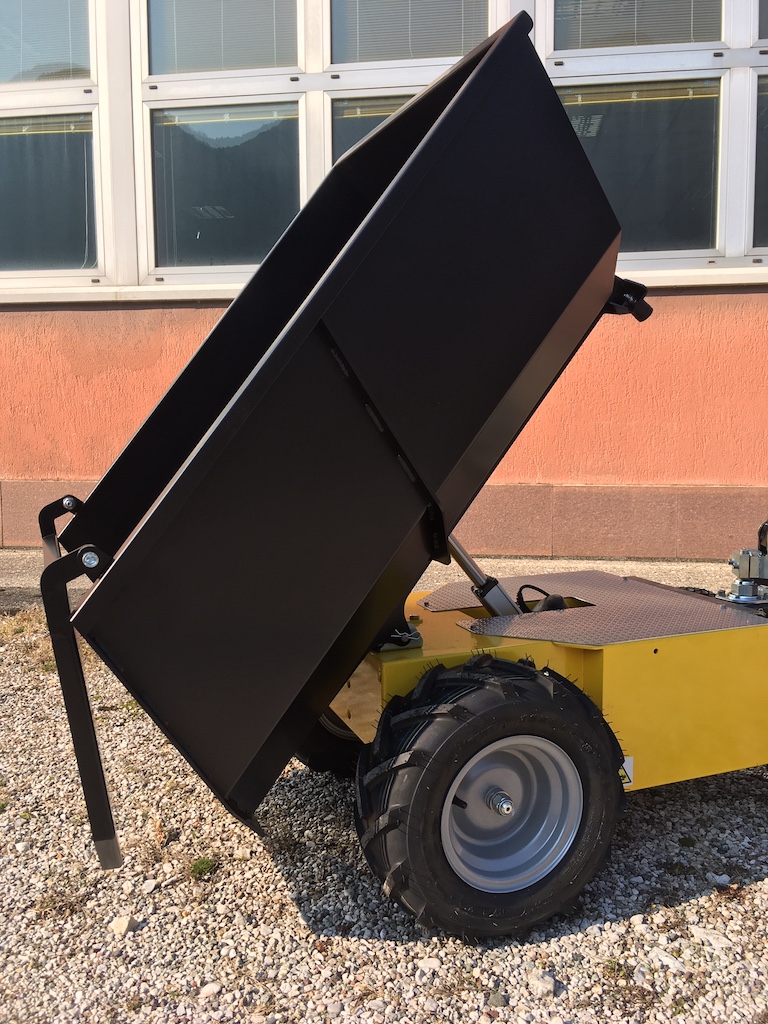

- Semi-automatic tipping skip
Skip Options:
#JM700-01 Standard Steel Skip:
has a Top Hinged opening front for dumping dry goods & spoil.
#JM700-02 Hopper or Funnel type Skip:
front pouring funnel for dumping Wet Contents, Cement mix, Sand, Gravel etc

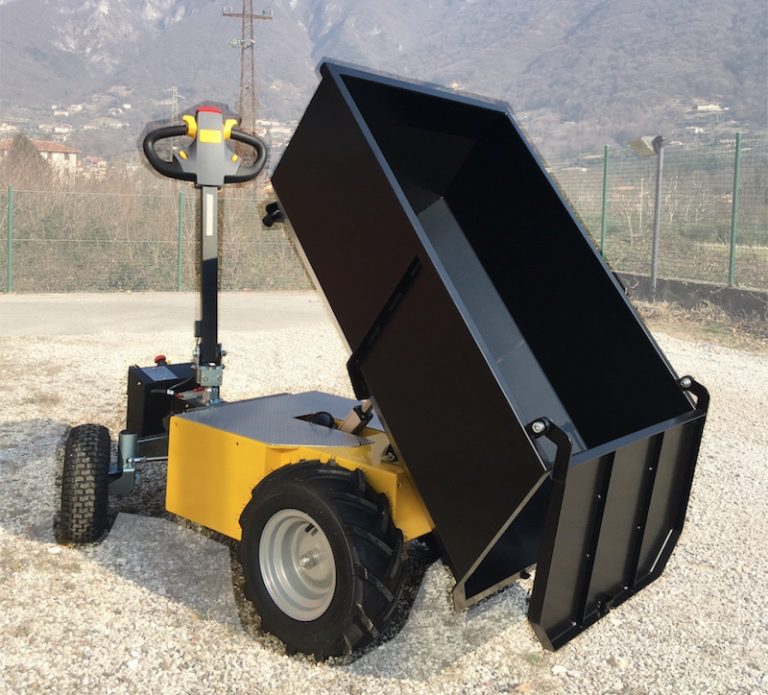

Skip 1: Standard Steel Skip

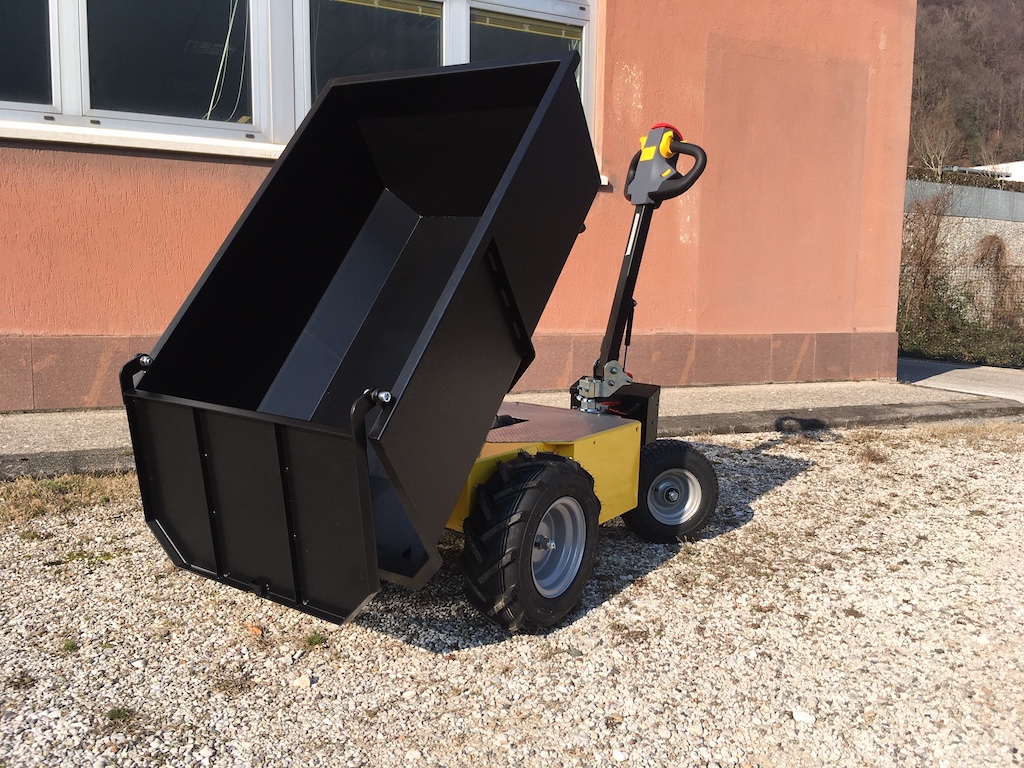

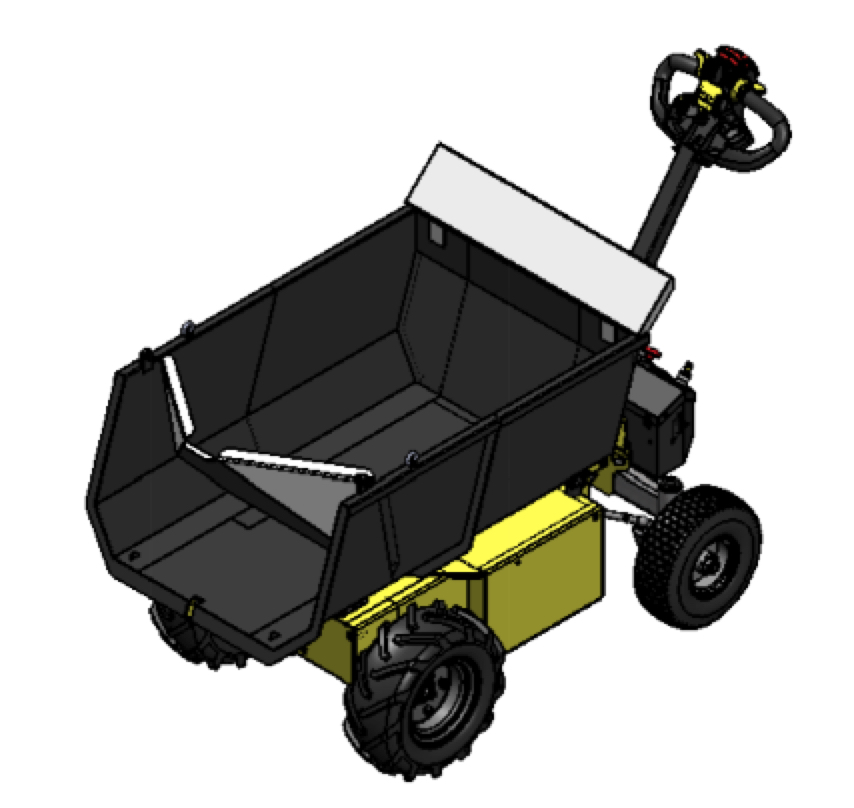

Skip 2: Hopper/Funnel Steel Skip
