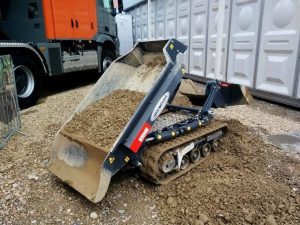

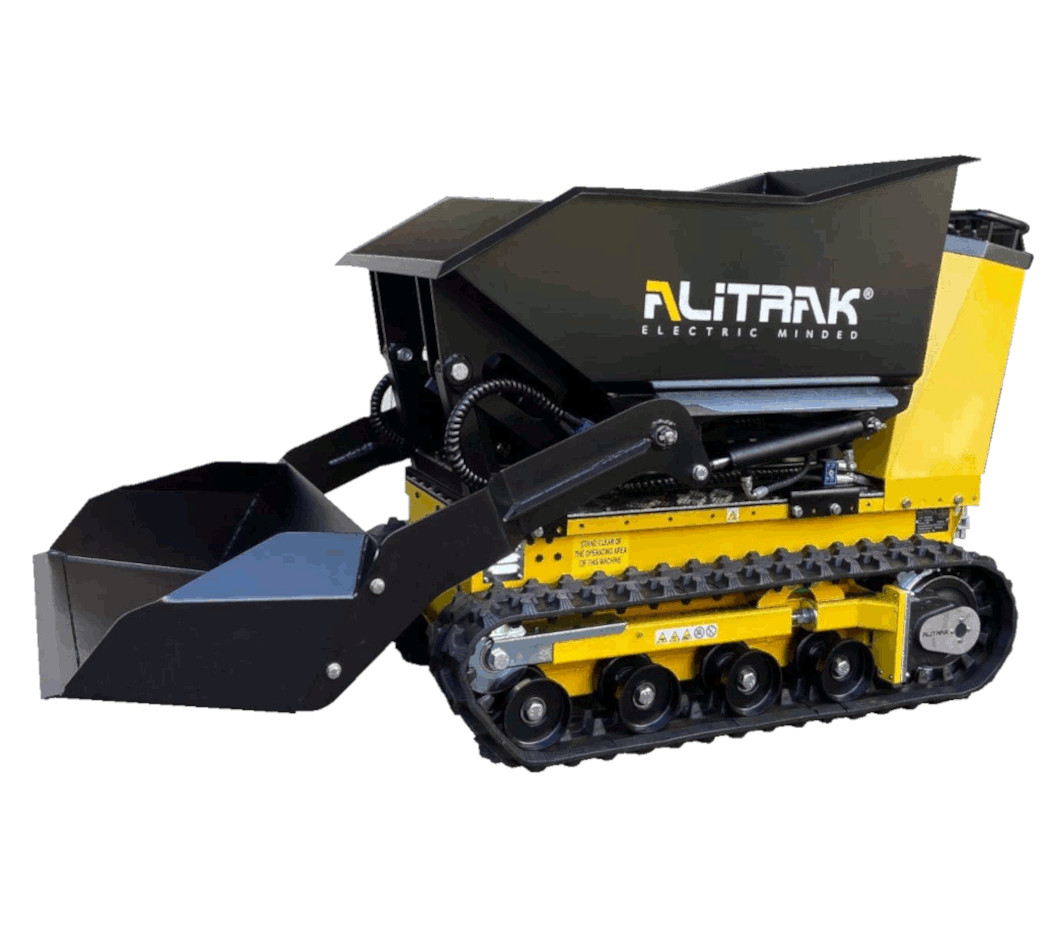

The DCT-350 MINI DOZER is an electric vehicle on batteries. Featuring crawlers with special tread design and equipped with two powerful motors, has been designed to meet the most challenging ground conditions and to easily climb the stairs.
The driving system employed in the DCT-350 is the remote control, which ensures the highest safety standards.
DCT350 Dozer include dashboard with remaining battery charge display, electronic equipment failure indication, hour meter, radio remote control with 2 speed switch, Hydraulic system, Setting up of bucket + openable shovel (not self-loading)
SPECIFICATIONS:
- Loading capacity: 450 kg
- Max. gradient: 30%
- Max. lateral gradient: 20%
- Forward speed: fast 4.5 Km/h – slow 2,3 Km/h
- Reverse speed: fast 4.5 Km/h – slow 2,3 Km/h
- Battery recharge: Approx. 8 hours
- AGM battery: 4 x 12V/114Ah C20
- Electromotor: 2 x 48V/1500 watt S2 60 min.
- Length: 1342 mm
- Width: 790 mm
- Height: 440 mm
- Weight: 377 kg
- Dashboard display: Remaining battery charge – Equipment failures – Hour meter
- Battery charger: External with charge status information
- Driving control type: Remote control
- Accelerator: 2 Joysticks
- Parking brake: Electromagnetic
MODEL OPTIONS:
| # DCT-350-DOZER | Base Model with skip and dozer |
| # DCT-350PH2-02-DZ | Low Profile self loader |
| # DCT-351PH3-01-DZ | Low Profile skip and self loader |
Gallery:
