Built on a Proven Australian Design
The Hydralift 150 is based on a long-standing Australian bin lifter design that has served councils, schools, waste contractors and industrial sites for decades.
The design has been fully updated, re-engineered and refined to further enhance operator safety and overall system reliability – bringing a proven concept up to modern standards.
Strongarm Manufacturing continues this Australian engineering legacy with a tougher, safer, and more advanced Hydralift 150. Purpose-built for today’s OHS requirements and industrial environments.
What is the Hydralift 150?

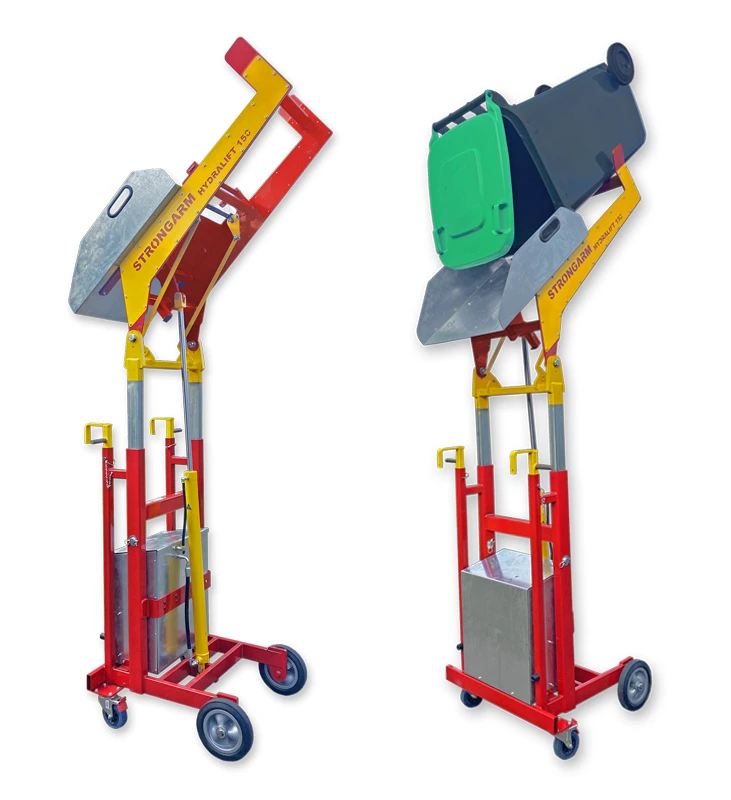

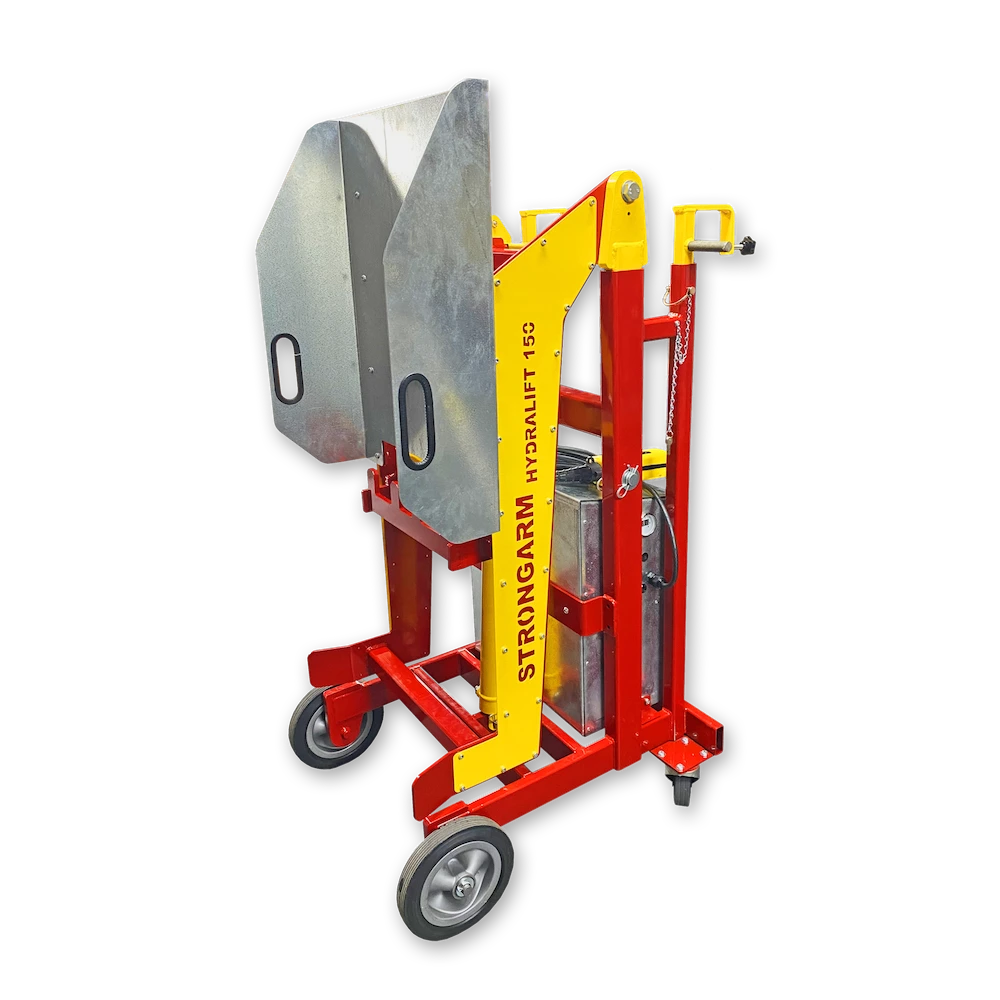

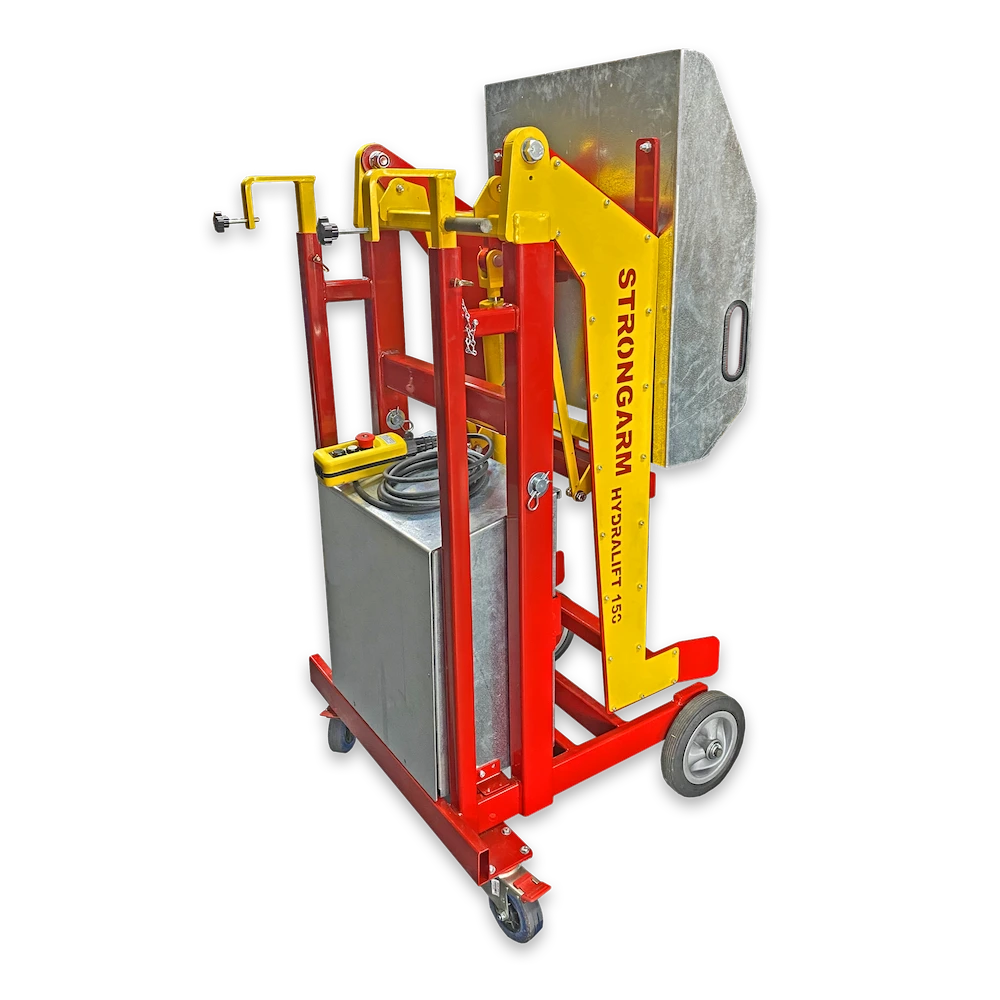

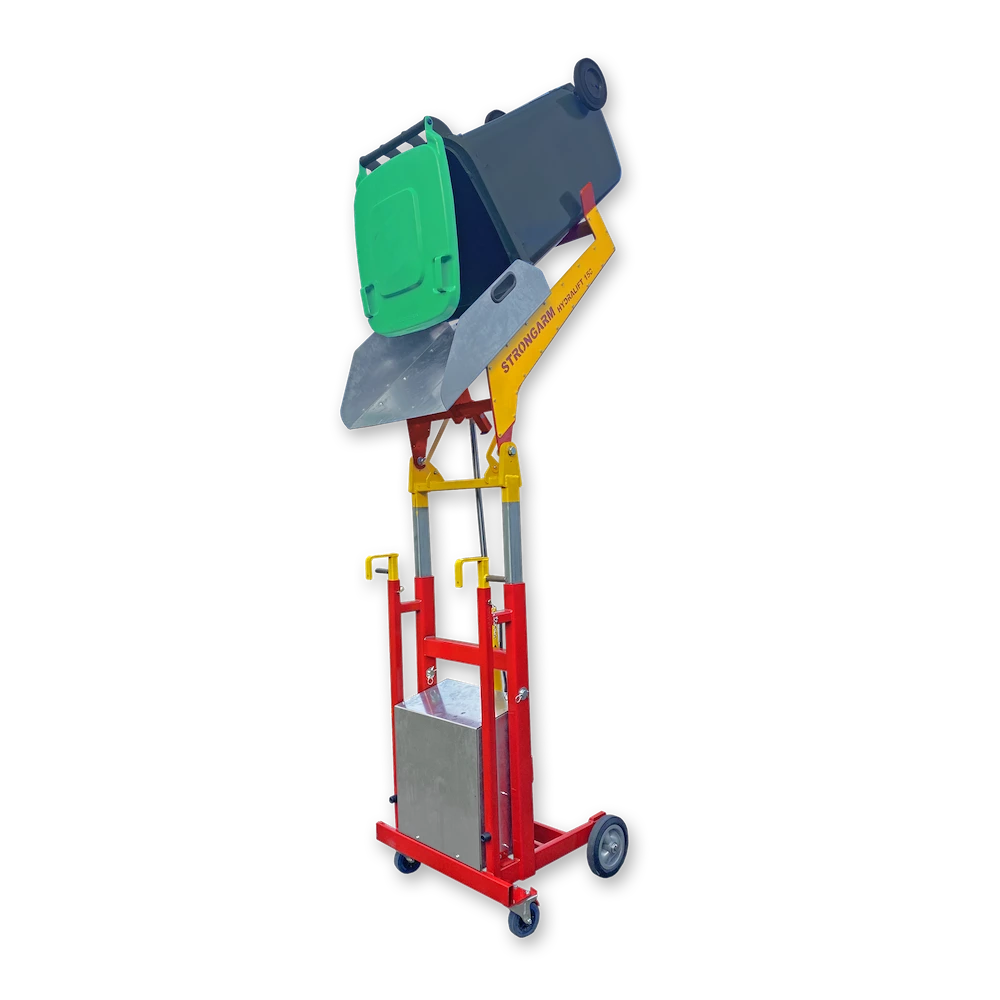

The Hydralift 150 is a heavy-duty electro-hydraulic bin lifter designed to make waste handling safer, faster and easier on any worksite.
It lifts and tips these common wheelie-bin sizes: 120, 140 and 240 litres.
The Hydralift eliminates manual-handling risks and improves efficiency across industrial and commercial environments.
Download Flyer Download ManualThe Strongarm Hydralift 150 Skip-Mounted Bin Lifter is an Australian-made 150kg wheelie bin lifter for 120, 140 and 240 Litre bins, designed to lift and tip non-hazardous waste into compatible skips.
Features of Strongarm Hydralift 150 Skip-Mounted Bin Lifter:
- Australian-made construction continues a long-standing Australian bin lifter design, re-
engineered for current OHS requirements and industrial environments. - Powered lifting and tipping reduces manual handling when emptying compatible wheelie
bins into a skip. - Automated bin-catch system removes the need for manual latching during operation.
- Telescopic mast design provides improved visibility around the bin lifter during use.
- Hold-to-run pendant control allows the operator to control raising and lowering from
outside the exclusion zone, with an emergency stop for added safety. - Hydraulic safety controls include a hose-burst valve, relief valve and flow control to
support controlled lifting and descent. - Skip-mounted operation secures the lifter to a compatible skip before use and is
designed for operation on flat, firm ground.
Specifications for Strongarm Hydralift 150 Skip-Mounted Bin Lifter:
| Specification | Details |
|---|---|
| Model: | Hydralift 150 |
| Safe Working Load (SWL): | 150kg |
| Compatible Bin Sizes: | 120, 140 and 240 Litre wheelie bins |
| Intended Contents: | Non-hazardous waste |
| Skip Lip Thickness: | 30–80mm |
| Skip Lip Height: | 1200–1800mm |
| Lowered Height: | 1549mm |
| Overall Width: | 830mm |
| Tip Height: | 3539mm including a 240 Litre bin |
| Swing Radius: | 1812mm including a 240 Litre bin |
| Cycle Time: | 25–30 seconds |
| Power Options: | 12VDC battery or 240VAC electric |
| Control System: | Low-voltage wired hold-to-run Up/Down pendant with emergency stop |
| Pendant Lead Length: | 3m |
| Operator Exclusion Zone: | 3m |
| Hydraulic System: | Single-acting cylinder, hose-burst valve, relief valve and flow control |
| Operating Surface: | Flat, firm ground with the lifter securely attached to a stationary, structurally sound skip |
| Compliance: | Complies with AS 4024 Safety of Machinery and relevant hydraulic and electrical safety requirements |
| Warranty: | 12 months against defects; exclusions apply |
| Manufacture: | Australian made |
Manufacturer Wheelie Bin Weight Limits
| Specification | Details |
|---|---|
| Model: | Hydralift 150 |
| Safe Working Load (SWL): | 150kg |
| Compatible Bin Sizes: | 120, 140 and 240 Litre wheelie bins |
| Intended Contents: | Non-hazardous waste |
| Skip Lip Thickness: | 30–80mm |
| Skip Lip Height: | 1200–1800mm |
| Lowered Height: | 1549mm |
| Overall Width: | 830mm |
| Tip Height: | 3539mm including a 240 Litre bin |
| Swing Radius: | 1812mm including a 240 Litre bin |
| Cycle Time: | 25–30 seconds |
| Power Options: | 12VDC battery or 240VAC electric |
| Control System: | Low-voltage wired hold-to-run Up/Down pendant with emergency stop |
| Pendant Lead Length: | 3m |
| Operator Exclusion Zone: | 3m |
| Hydraulic System: | Single-acting cylinder, hose-burst valve, relief valve and flow control |
| Operating Surface: | Flat, firm ground with the lifter securely attached to a stationary, structurally sound skip |
| Compliance: | Complies with AS 4024 Safety of Machinery and relevant hydraulic and electrical safety requirements |
| Warranty: | 12 months against defects; exclusions apply |
| Manufacture: | Australian made |
| 120 Litre Wheelie Bin: | 48–70kg |
| 140 Litre Wheelie Bin: | 60–80kg |
| 240 Litre Wheelie Bin: | 96–110kg |
| Bin SWL Requirement: | Check each bin’s Safe Working Load and avoid overloading |
The Strongarm Hydralift 150 is designed as a skip-mounted bin lifter/bin tipper for councils,
schools, waste contractors and industrial sites handling standard wheelie bins with non-
hazardous waste. It provides a powered wheelie bin lifting solution for compatible skip-bin
applications.
