Storemasta Relocatable Bulk Dangerous Goods Stores are an ideal solution for immediate, safe, approved and efficient storage of large quantities of dangerous goods – without the problems and expense associated with building fixed stores.

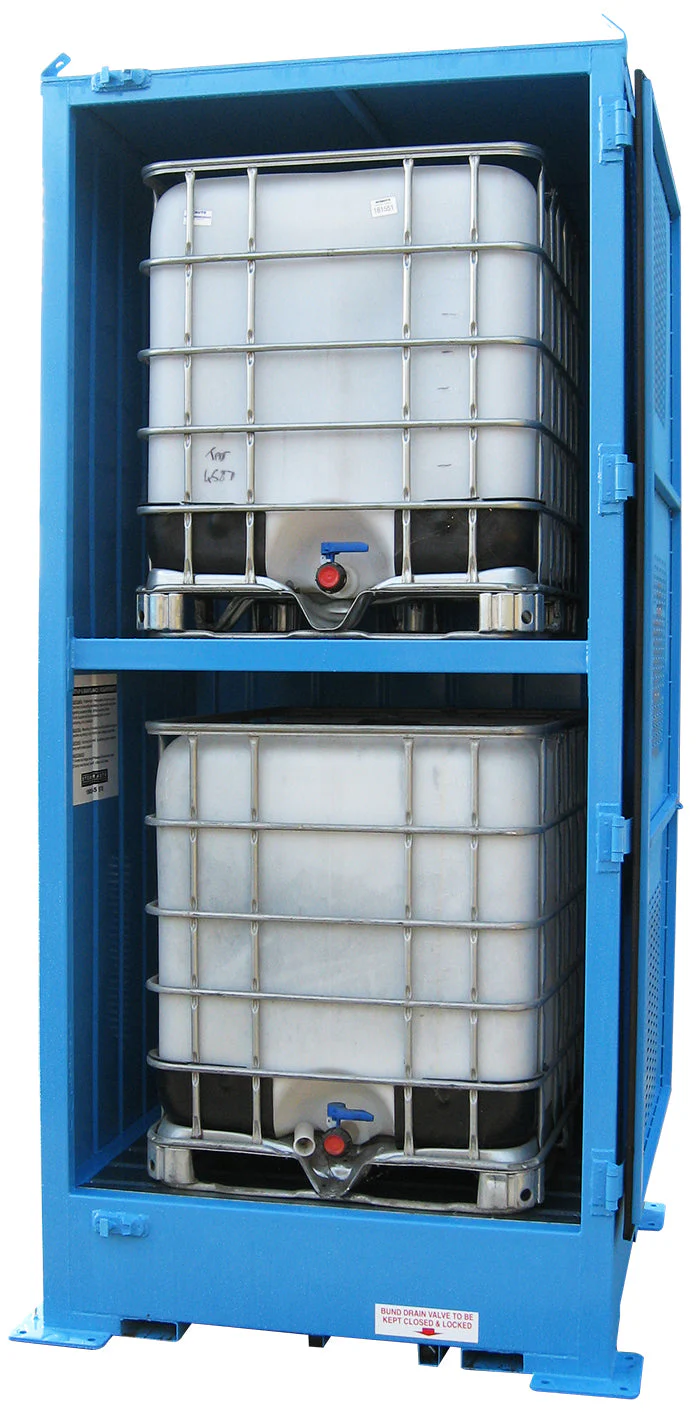

Each Single Depth Corrosive Substance Store – 2 IBC – Vertical offers compliant storage in a compact and convenient design.
This Storemasta Relocatable Bulk Dangerous Goods store has a capacity of up to 2000 litres of corrosive substances, or 2 IBCs.
FEATURES
- Constructed with quality sheet steel

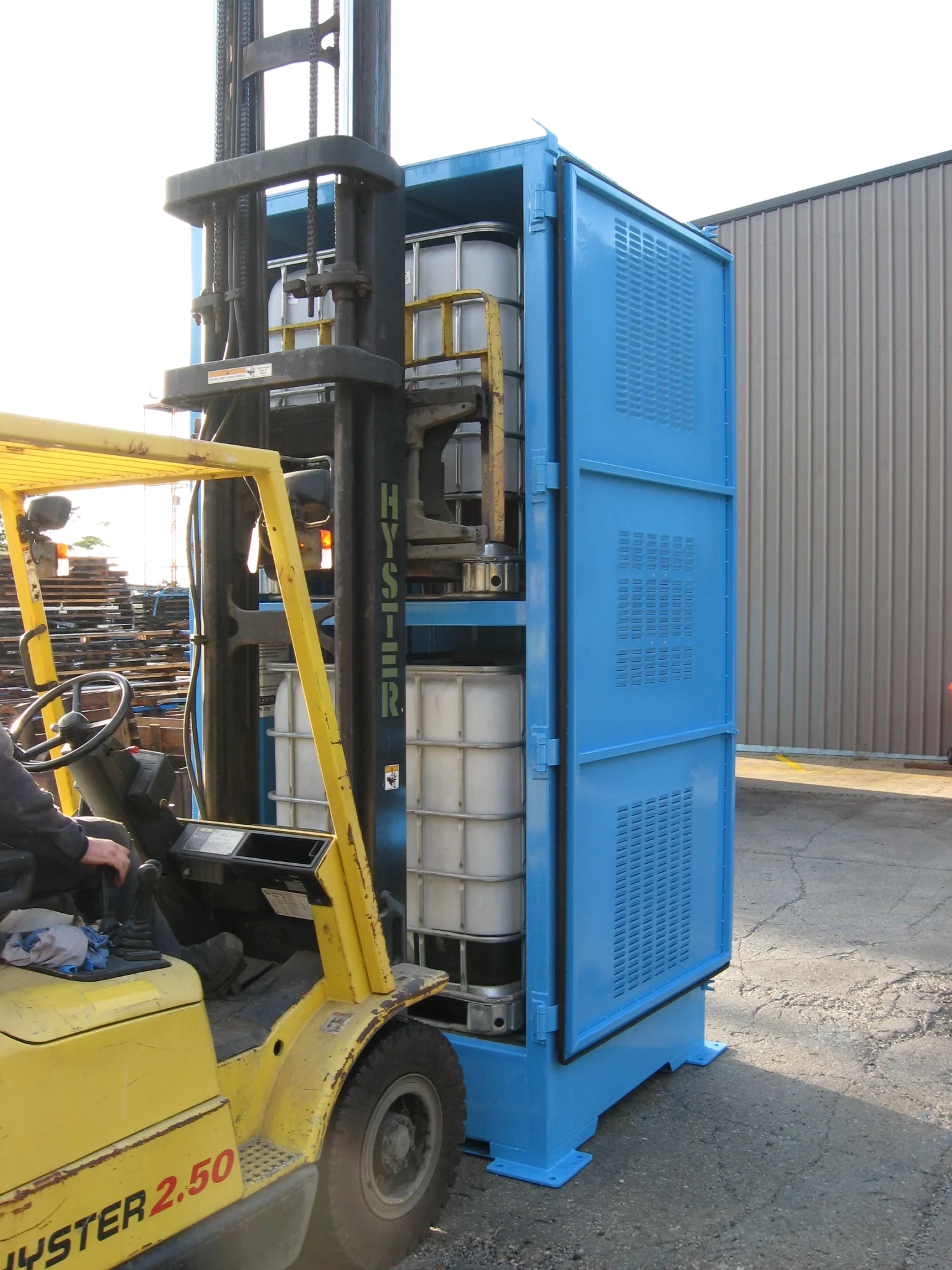

- Door which folds back 270° for ease of access when loading and unloading IBC’s with a forklift
- Easy access: each IBC accessible via forklift
- ISO locking bar for high security
- Natural ventilation that complies with AS 3780:2008
- Lifting lugs, forklift channels and locating plates
- Finished in high build 2 pak polyurethane primer and high gloss topcoat, total build thickness minimum of 120 microns
- Cyclonic proof construction
- Earth stake and mounting
- Cambered roof for rainwater run off
- Liquid tight spill containment sump with compliant capacity
- Engineered footing details available

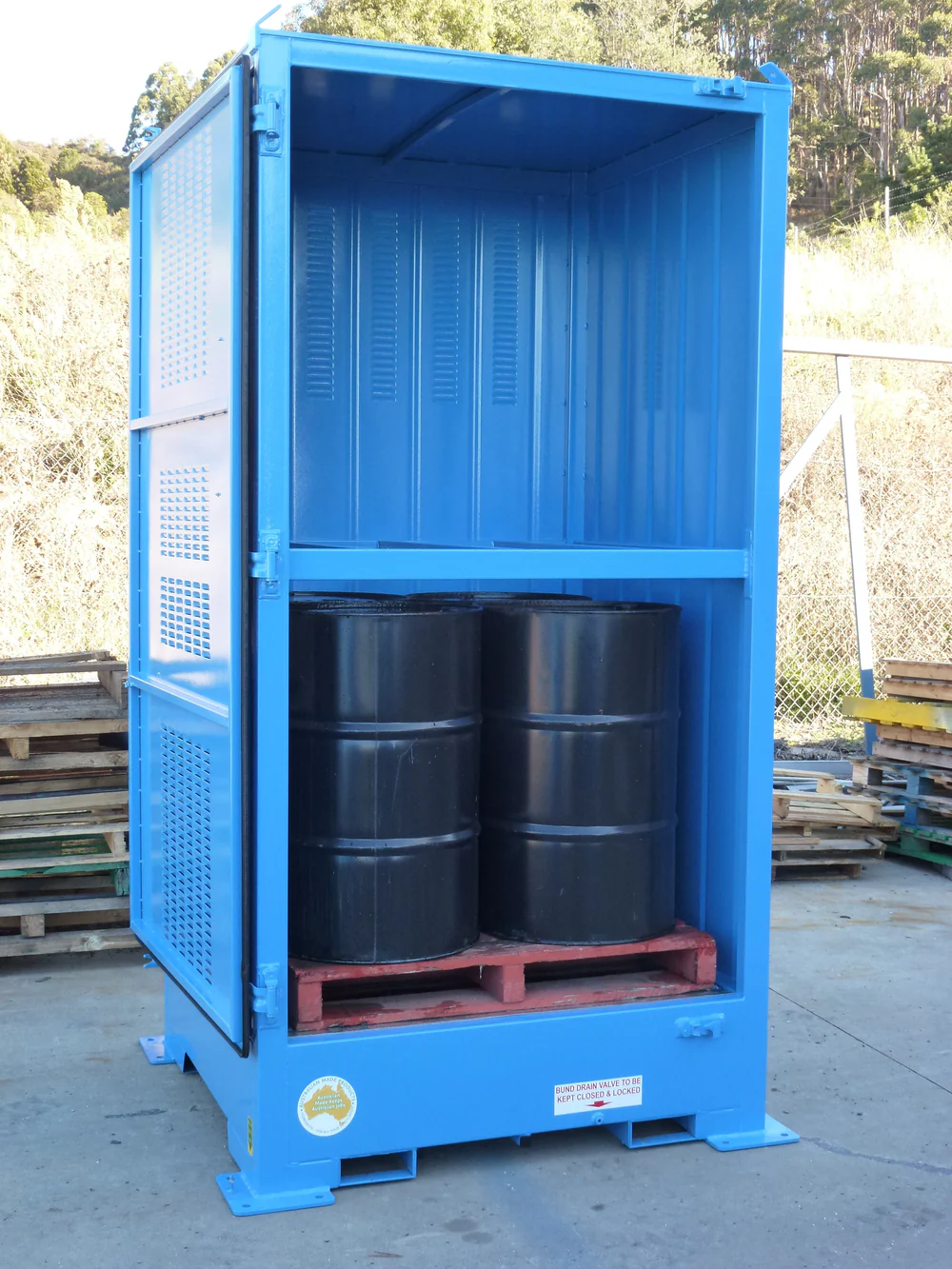

- Suitable for storage of IBC’s and pallets

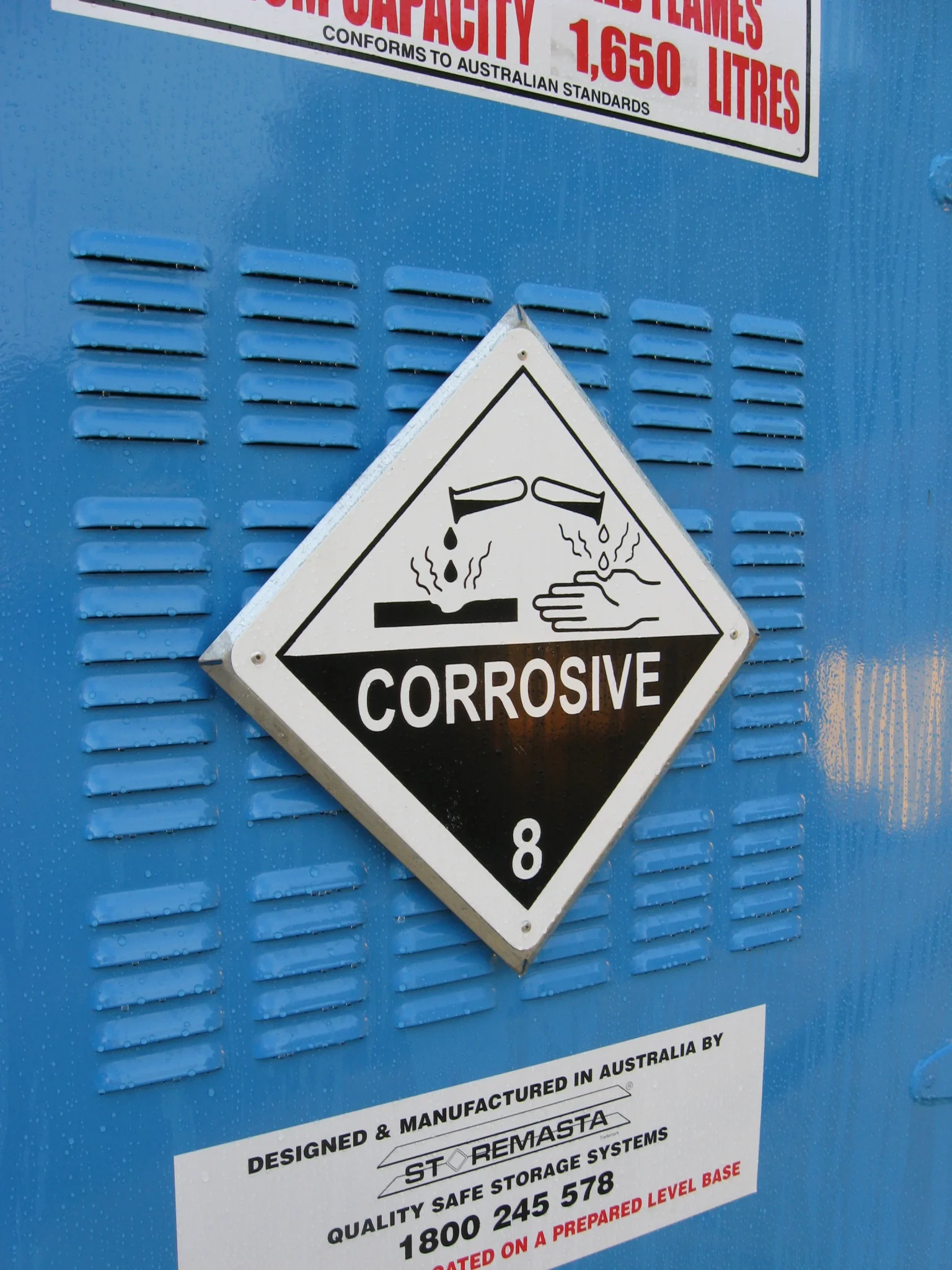

- Appropriate warning and safety signage that complies with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS 3780-2008 – The storage and handling of corrosive substances
DIMENSIONS (mm)
| External | H 3445 | W 1790 | D 1740 |
| Internal | H 2650 (2×1275) | W 1500 | D 1525 |
STORAGE CAPACITY
| Max Capacity | 2000L |
| Pallets | 2 |
| IBC | 2 |
*****5 Storage levels
Calculations based on these package size
Dangerous Goods Compliance Specifications
| Complies with | AS3780-2008 |
| Sump Capacity | 1500L |
OTHER SPECIFICATION
| Weight | 569.0 kg |
| Storage Levels | 1 |
