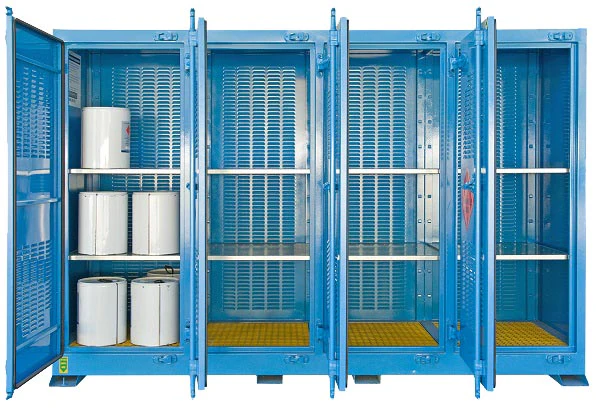

The PR850-8 is a hard-wearing Outdoor Chemical Store designed to hold up to 850 litres of Class 8 Corrosive Substances. This Miniseries store is purpose-built to withstand a harsh outdoor environment and features a cambered roof for maximum rainwater run-off, cyclone proof construction, and ISO locking bars for maximum protection.
Safety features of the 850L – Small Outdoor Corrosive Substance Store include fully adjustable shelves that are perforated to maximise air flow, a 238 litre capacity spill containment sump (liquid tight), and ventilators.
This Australian made 850L – Small Outdoor Corrosive Substance Store is built with 4 x heavy-duty doors that fold back 270° for ease of operation. It also comes complete with all relevant dangerous goods and hazard signage.
Reduce your DG risk today with this Miniseries storage solution.
FEATURES
- Doors with 270° hinging to provide easy access
- ISO locking bars for high security
- Natural ventilation that complies with AS 3780:2008
- Forklift channels for easy relocation
- Heavy duty adjustable perforated shelving
- Cambered roof for rainwater run off
- Earthing stake and mounting
- PVC spill trays on shelves for corrosion protection
- Appropriate safety signage that complies with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS 3780:2023 – The storage and handling of corrosive substances
DIMENSIONS (mm)
| External | H 1995 | W 2990 | D 900 |
| Internal | H 1690 | W 2825 | D 755 |
STORAGE CAPACITY
| Max Capacity | 850L |
| Drum Size | 0.5L | 2.5L | 5L | 4L |
| Capacity | 2000***** | 500***** | 108 | 180***** |
| Drum Size | 20L | 60L | 205L |
| Capacity | 48 | 8 | 4 |
*****5 Storage levels
Dangerous Goods Compliance Specifications
| Complies with | AS3780 – 2023 |
| Sump Capacity | 340.8L |
OTHER SPECIFICATION
| Weight | 513.8 kg |
| Shelf Levels | 2 |
| Storage Levels | 3 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 165 |
| No. of Shelf Lugs | 10 |
