The Revolutionary Self-loader Forklift for Vans and Light Trucks
After loading the cargo, InnoLIFT climbs into the Vehicle itself. The space needed is the same as with a hand pallet truck. The unloading process is as easy as the loading.
Efficient
With a vehicle and an Innolift, you can load, unload and deliver your cargo safely and efficiently to your client. Thanks to the fast operation you are able to make even more deliveries.
Safe
Ergonomic design and simple operation helps you avoid health and safety risks. It also reduces sick days due to strain. The Innolift is very easy and safe to operate.
High-quality
Careful planning, superior standard parts and high-class manufacturing ensure reliable and durable products.
The Innolift is CE marked and it meets all international quality standards

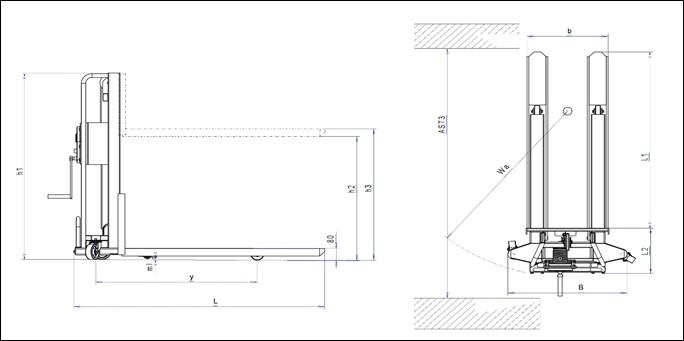

Innolift IV300.800 Specifications
| Capacity | kg | 300 |
| Load center | mm | 600 |
| Lifting height | mm | 800 |
| Loading height | mm | 700 |
| Own weight | kg | 103 |
| Overall lowered height | mm (h1) | 1080 |
| Overal extend height | mm (h4) | 1080 |
| Wheel material | Polyurethane | |
| Wheel dimensions, front | mm | 75 x 60 |
| Wheel dimensions, rear | mm | 100 x 40 |
| Total length | mm (L) | 1520 + (90 for winch handle) |
| Lenght without forks | mm (L2) | 350 + (90 for winch handle) |
| Chassis width | mm (B) | 710 |
| Wheel base | mm (y) | 960 |
| Fork dimensions | mm | 120 x 50 |
| Fork length | mm (L1) | 1160 |
| Fork width | mm (b) | 475 |
| Ground clearance | mm (ml) | 0 – 30 |
| Working aisle AST3 | mm | 1810 |
| Turning radius | mm (Wa) | 1120 |
| Parking brake | Mechanical |
IMPORTANT MODEL SELECTION INFO:
Palletized and non-palletized freight loading height, lifting height, door opening height and minimum width of cargo area (usually the wheel housings) must all be taken into consideration when choosing a unit. PLEASE FILL OUT the “Vehicle Details Form” digital form or you can print out “PDF Innolift Form“. Our customer service team will review your form and contact you to help ensure you find the right loader for your needs.
*Cargo van loading requires the use of our Adjustable, Aluminum Rear Plate accessory for safe loading over bumpers with a step
*InnoLIFT Loaders include a 12V/44A rechargeable Sealed battery, 12V/10A AC wall-charger, and an optional DC in-vehicle charger.
*InnoLIFT Loaders are designed to operate mainly indoors and on solid, flat and parallel ground; avoid rough terrain and slopes greater than 5 degrees for safe use. Operating outside is permitted if InnoLIFT is used on solid ground and in dry weather.
Click here to see Innolift Options or Accessories
Innolift Australia Warranty:
InnoLIFT Loaders come with a standard 1-year parts warranty. Spacepac offers an optional 2-year extended parts warranty.
