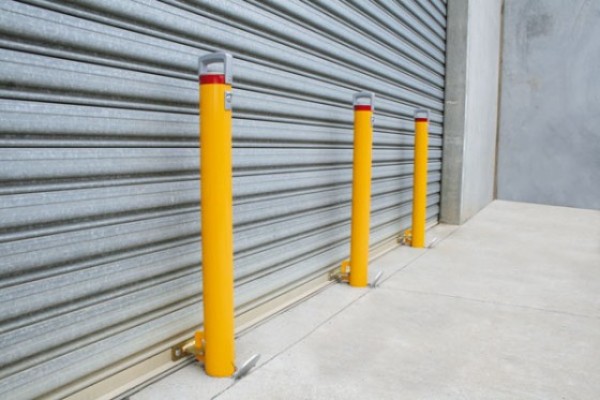

Key operated, roller door protection bollard

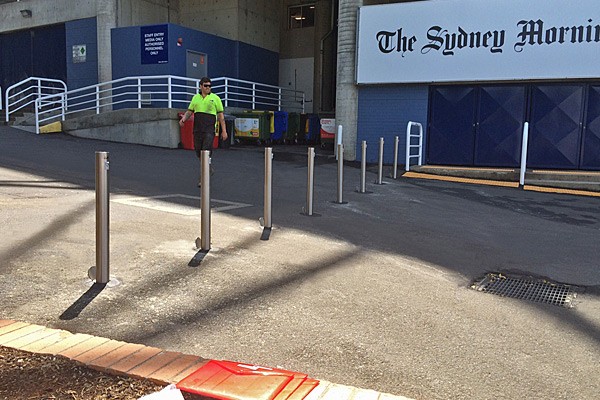

The Cam-lok range of removable bollards with their heavy steel construction were originally designed to help combat ‘Ram-raids’ on businesses. While they still serve this security role with thousands of them now in the field, we find that our Cam-lok’s are being used more and more in architectural environments for managing vehicle access in restricted areas.
These architectural applications vary from the security role in that there is a greater demand for an aesthetically pleasing design, hence the use of polished stainless steel instead of the more industrial powder coated finishes. However some things never change, one of these is our insistence on using only the very highest quality ‘Bi-lock’ removable core lock mechanisms with security registered keying.
These are very expensive and make up a substantial part of the cost of the finished bollard, which is why most competitors removable bollards currently on the market use cheap, very poor quality locks that are unreliable and readily breached. While this may reduce the initial investment, it compromises the effectiveness of the bollard and the long term security of your assets.
Another area where our product differs from most is that all our steel bollards (including those with powder coated finishes) are hot dip galvanised during manufacture. Alternatively our stainless steel models are made from marine grade 316. Cam-lok removable bollards come in two styles. Freestanding for shop front or public open space installations, and roller door models for the protection of factory roller shutter doors.
|Description:||Key operated removable bollard for roller doors.|
|Material:||Steel post 90mm diameter with 5mm thick wall/ Stainless steel 90mm diameter with 3.05mm wall/ Steel post 140mm diameter with 5mm thinck wall/ Stainless steel 140mm diameter with 3.4mm wall.|
|Finish:||Hot dip galvanised as standard.
Yellow powder coating or custom colours.
|Height:||950mm or 1050mm above ground.
200mm below ground.
|Weight:||Post 9 to 21kg.

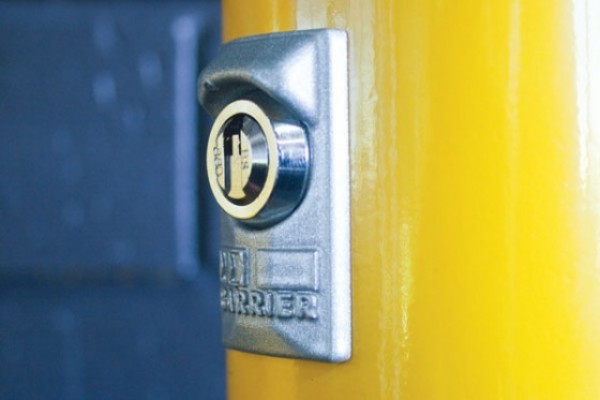

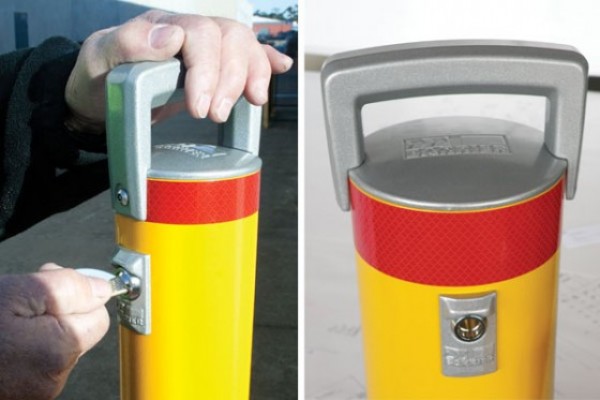

|Locking:||Internal locking mechanism with high security cam-loks and registered keys.|

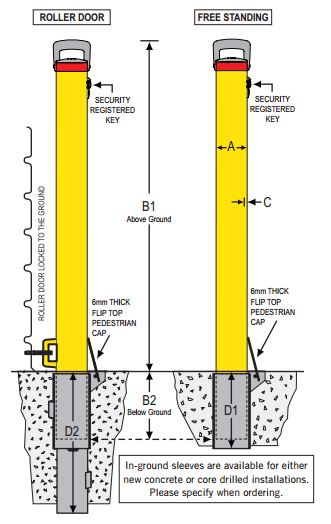

|Installation:||In-ground sleeves are available in either core-drilled or new concrete footing. (please specify when ordering)|
|PART No.||DESCRIPTION||SLEEVE CORED||SLEEVE|
|BCL90||90mm freestanding – Galvanised and powder coated||BCL90S-CD (225mm)||BCL90S-NC (425mm)|
|BCL90-G||90mm freestanding – Galvanised only||BCL90S-CD (225mm)||BCL90S-NC (425mm)|

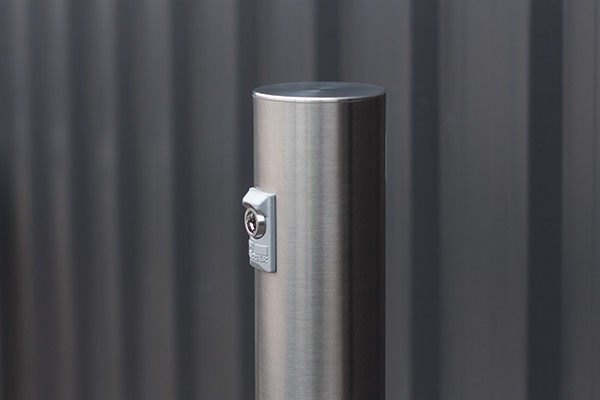

|BCL90-SS||90mm freestanding – flat cap – 316 stainless steel||BCL90SS-CD (225mm)||BCL90SS-NC (425mm)|

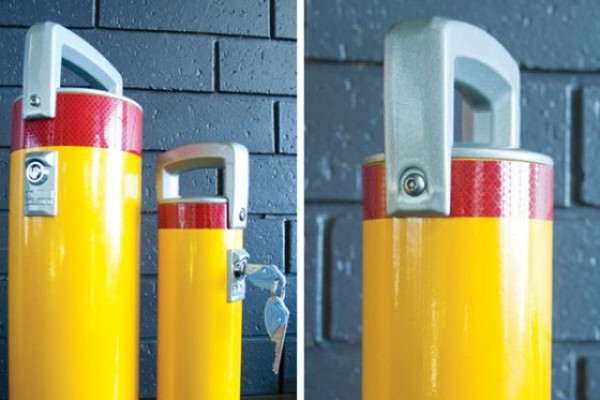

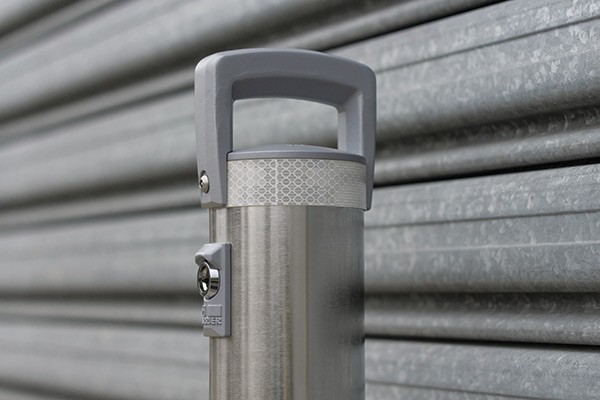

|BCL90-SSH||90mm freestanding – handle – 316 S/S with ali cap & handle||BCL90S-CD (225mm)||BCL90SS-NC (425mm)|

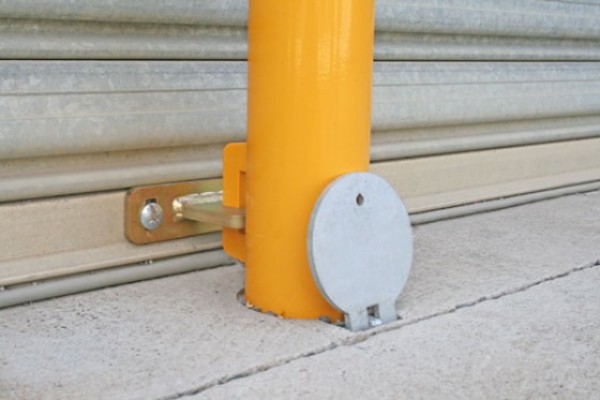

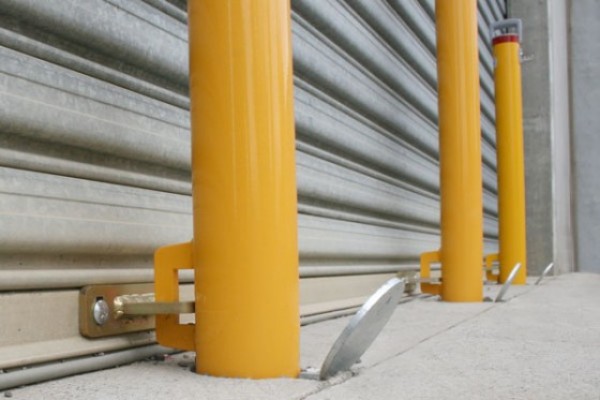

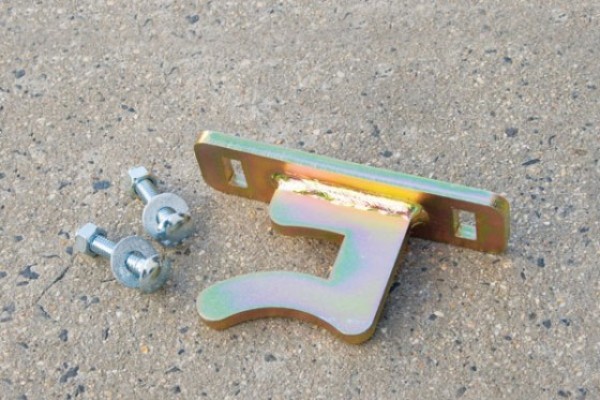

|BCL90RD||90mm roller door with brackets – Galvanised and powder coated||BCL90S-CD (225mm)||BCL90S-NC (425mm)|
|BCL90RD-G||90mm roller door with brackets – Galvanised only||BCL140S-CD (225mm)||BCL90S-NC (425mm)|
|BCL140||140mm freestanding – Galvanised and powder coated||BCL140S-CD (225mm)||BCL140S-NC (425mm)|
|BCL140-G||140mm freestanding – Galvanised only||BCL140SS-CD (225mm)||BCL140S-NC (425mm)|
|BCL140-SS||140mm freestanding – flat cap – 316 stainless steel||BCL140SS-CD (225mm)||BCL140SS-NC (425mm)|
|BCL140-SSH||140mm freestanding – handle – 316 S/S with ali cap & handle||BCL140SS-CD (225mm)||BCL140SS-NC (425mm)|

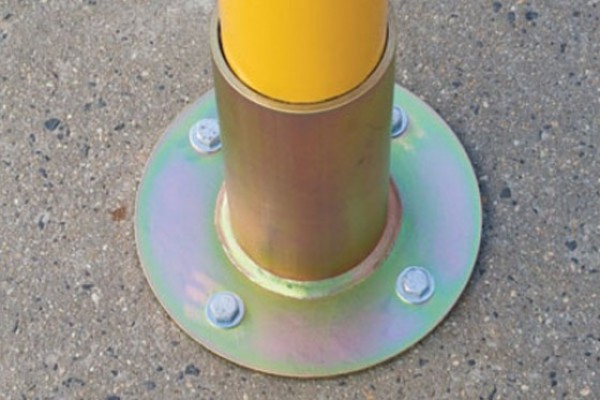

|BCL90H||Cam-Lok 90mm surface mount bollard holder|
|BCL140H||Cam-Lok 140mm surface mount bollard holder|

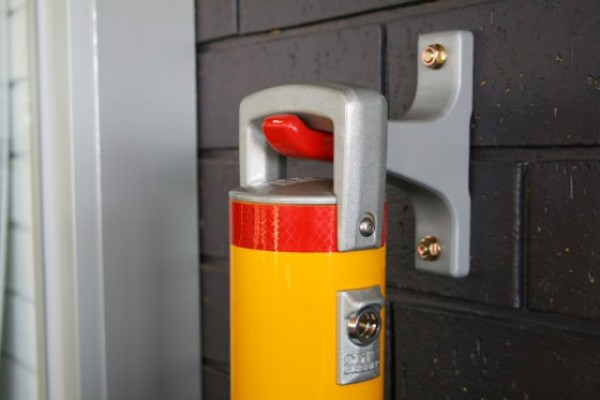

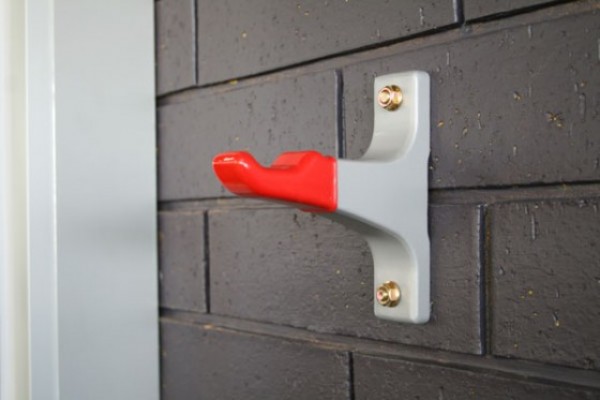

|BHH||Wall mount bollard holder|

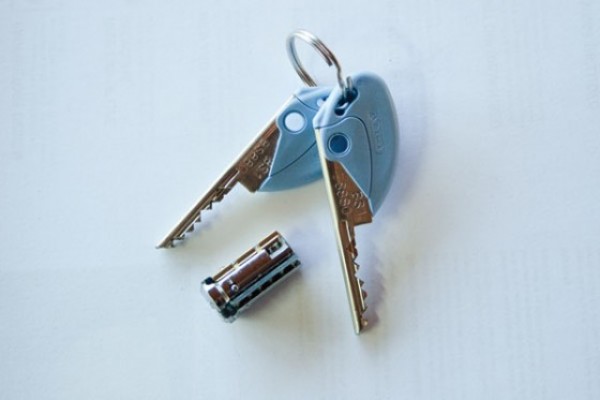

|BCLKEY||Cam-Lok additional registered key|
